Why Your HVAC System Has Separate Parts for Heating, Cooling, and Air Movement

The Parts That Actually Do the Work

Most homeowners think of a furnace or air conditioner as a single appliance. In reality, a residential HVAC system is a collection of components that each handle one of three jobs: adding heat, removing heat, or moving air. Understanding which part does what makes it far easier to judge whether a strange noise, weak airflow, or uneven room temperature is a minor issue or something that needs professional attention.

The heating side typically includes a heat exchanger, burners, a gas valve, an inducer fan, and a control board. The cooling side includes a compressor, condenser coil, evaporator coil, metering device, and refrigerant lines. The air-handling side includes the blower, blower motor, fan cage, filter, ductwork, and supply and return registers. These are not interchangeable. A problem that looks like "the AC isn't working" can originate in any one of dozens of places, and the symptom alone rarely identifies the cause.

Why the System Is Split Into Indoor and Outdoor Sections

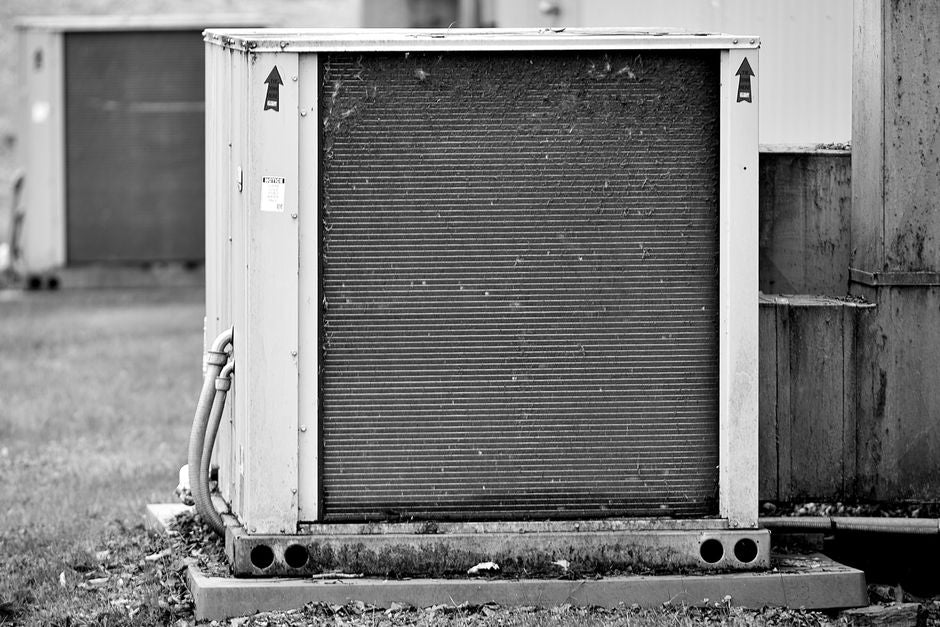

A split-system air conditioner separates the evaporator coil indoors from the condenser and compressor outdoors. This is not an arbitrary design choice. The evaporator absorbs heat from indoor air and must be close to the air handler to minimize duct losses. The condenser rejects that heat to the outdoors, where it can dissipate. Splitting the system also keeps the noisy compressor away from living space.

That split creates a refrigerant loop that connects the two halves through copper lines. The loop must remain sealed, charged, and free of moisture and contaminants. If the refrigerant charge is wrong, the system loses capacity, the compressor runs hotter, and efficiency drops. Refrigerant is not a consumable like fuel. A low charge almost always means a leak somewhere in the loop.

Heat Exchangers, Burners, and Combustion Safety

The heat exchanger is the metal boundary between combustion gases and the air you breathe. In a gas furnace, burners produce flame inside the exchanger. The metal walls absorb heat, and the blower pushes household air across the outside of those walls. The combustion gases exit through a flue or vent.

If the heat exchanger cracks, combustion byproducts can mix with supply air. This is a carbon monoxide hazard, not a comfort issue. Cracks are not always visible during a casual inspection. Symptoms that should trigger a professional service call include a yellow or lazy flame instead of a steady blue one, soot deposits, a persistent headache or flu-like feeling when the heat runs, or a CO detector alarm. Do not attempt to inspect or repair a heat exchanger yourself.

Airflow: The Most Overlooked Variable

A furnace or air conditioner can be fully functional and still fail to heat or cool a room if airflow is restricted. Airflow depends on the blower, the filter, the duct layout, and the return path. When airflow drops, the system may still run, but the temperature split across the coil or heat exchanger changes, which can lead to freezing, overheating, or premature failure.

Filters

The filter protects the blower and coil from dust. It is not a substitute for source control or ventilation. A clogged filter increases resistance, reduces airflow, and can cause the evaporator coil to ice over in cooling mode. Filter replacement intervals depend on filter type, household dust, pets, and runtime. Rather than following a fixed calendar, inspect the filter and replace it when it is visibly loaded. High-efficiency filters capture more particles but also create more resistance, which some blowers cannot overcome.

Ductwork

Ducts are part of the air-moving system, not an accessory. Leaky, undersized, or poorly routed ducts waste capacity and create pressure imbalances. A room that is always cold in winter and hot in summer often has a duct problem rather than an equipment problem. Sealing accessible duct joints with appropriate materials can help, but ducts inside walls, attics, or crawlspaces may need professional evaluation. Never block return air paths to solve a comfort complaint.

Thermostats and Controls

The thermostat is a low-voltage switch that tells the equipment when to run. It does not generate heat or cooling. Many comfort complaints trace back to thermostat placement, calibration, or wiring rather than the equipment itself. A thermostat near a lamp, in direct sun, or on an exterior wall can read a false temperature and cycle the system incorrectly.

Smart thermostats add scheduling and remote control, but they do not change the physical limits of the system. A smart thermostat cannot fix undersized equipment, blocked ducts, or a failing compressor. Compatibility depends on the existing low-voltage wiring and the equipment's control terminals. Before replacing a thermostat, identify the system type and the number of wires available. If the existing wiring is unclear or the equipment uses communicating controls, professional installation is safer.

Common Symptoms and What They Usually Mean

• Weak airflow from all vents: Likely a blower, filter, or return-air restriction.
• Weak airflow from one vent: Likely a duct problem, damper position, or register obstruction.
• AC runs but does not cool: Could be low refrigerant, a dirty condenser coil, a failed capacitor, or a compressor issue.
• Furnace runs but does not heat: Could be a failed igniter, flame sensor, gas valve, or control board.
• Frequent on-off cycling: Could be oversized equipment, a thermostat problem, or a refrigerant charge issue.
• Ice on the indoor coil or refrigerant lines: Usually indicates restricted airflow or low refrigerant.
• Musty odor when the system runs: Often indicates microbial growth on the coil or in the drain pan, which points to a moisture problem.
• Water around the indoor unit: Usually a clogged condensate drain or a frozen coil that is thawing.

None of these symptoms by itself proves a specific failure. A technician uses pressure readings, temperature splits, electrical measurements, and visual inspection to narrow the cause. A homeowner can reasonably check the filter, verify the thermostat settings, confirm the outdoor unit has power and clear airflow, and look for obvious obstructions. Beyond that, refrigerant handling, combustion analysis, and electrical diagnostics belong to qualified technicians.

Condensate and Moisture

Cooling removes moisture from the air. That water collects on the evaporator coil, drips into a pan, and drains through a condensate line. If the line clogs, water backs up and can damage the cabinet, ceiling, or floor. Algae, dust, and biofilm commonly block these lines. A slow drain can sometimes be cleared from an accessible trap or service port, but a line that clogs repeatedly may have a slope, venting, or installation problem that needs professional attention.

What a Homeowner Can Reasonably Check

Before calling for service, confirm that the thermostat is set correctly, the filter is clean, the outdoor unit is clear of debris and has power, and the indoor unit has a clear return path. Check that the breaker for the equipment has not tripped. If the system uses a float switch in the condensate pan, a full pan can shut the system down deliberately.

Do not open the furnace cabinet to inspect the heat exchanger, do not add refrigerant, and do not bypass safety switches. Capacitors, contactors, and control boards can retain voltage. Electrical work on HVAC equipment should be handled by someone trained for it.

A basic tool such as a cordless drill kit can be handy for removing access panels or tightening loose screws on a filter grille, but it is not a diagnostic instrument. The real diagnostic tools for HVAC work — manifold gauges, multimeters, combustion analyzers — are specialized and require training to interpret safely.

When to Stop and Call a Professional

Call a qualified HVAC technician when you see ice on the coil or refrigerant lines, smell gas, hear unusual noises from the outdoor unit, notice water where it should not be, or observe any sign of combustion problems. Also call if the system trips a breaker, if the heat exchanger is suspect, or if refrigerant work is needed. These are not tasks where a homeowner can verify safe conditions by inspection alone.

Regular maintenance — clean filters, clear condensate lines, unobstructed outdoor units — extends equipment life and preserves efficiency. But maintenance cannot correct a design problem, a refrigerant leak, or a failing component. Distinguishing maintenance from repair is the first step toward a system that lasts.

The Bigger Picture

Residential HVAC is a system of systems. Heating, cooling, and air movement are separate functions that share a single air distribution network. A failure in one area often shows up as a symptom in another. Understanding which component does what, and what evidence points toward which failure, helps you make better decisions about when to troubleshoot, when to maintain, and when to call someone who is qualified to open the equipment.
