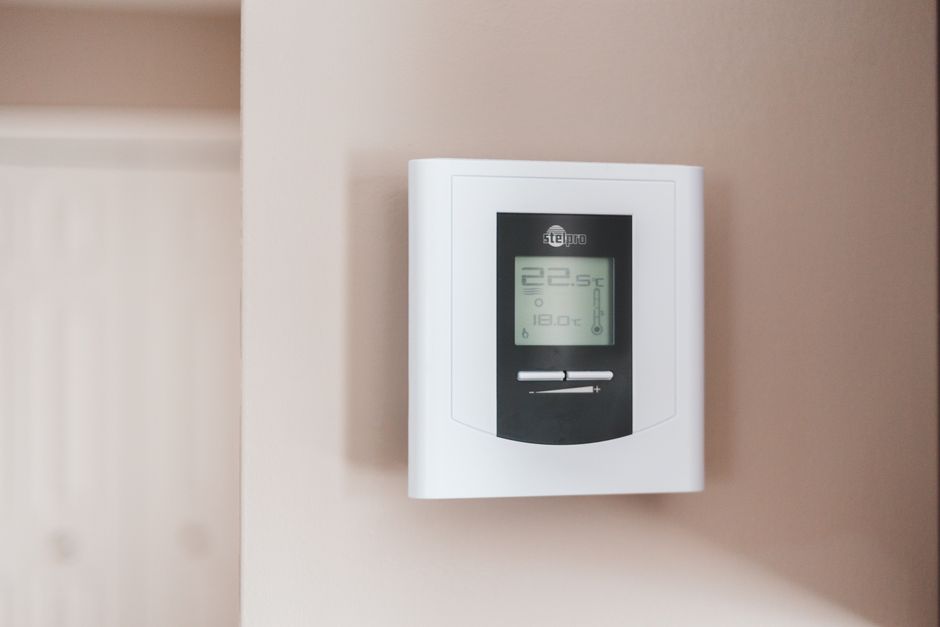

Why Thermostats and Wall Controls Need a Wire They Won't Get

The Hidden Reason a Thermostat Swap Goes Wrong

Replacing a thermostat looks like one of the simplest upgrades in a house: pull the old body off the wall plate, note which wires go where, and click a newer control into place. The surprise usually shows up after the new unit is mounted. The display lights up, the fan or the boiler responds, and then the system behaves strangely—short cycling, calling for heat when nothing is wrong, losing its clock every time the compressor starts, or refusing to run at all. The thermostat is rarely the defective part in that story. The wall control sits at the end of a control circuit, and that circuit was designed for a specific signal type, a specific number of conductors, and a specific amount of current. When any of those three assumptions change, the thermostat stops being a switch and starts being a small networked device that needs conditions the old cable may not provide.

Understanding why thermostats and other wall controls are wired the way they are removes most of the guesswork from installation and troubleshooting. The wall box is not just a mounting point; it is the interface between the heating or cooling equipment, the power source, and the occupant.

What a Wall Control Actually Controls

A basic thermostat is a temperature-sensitive switch. A bimetallic element, a wax actuator, or an electronic sensor opens and closes a circuit when the room reaches a set point. That closure does not directly power a furnace or an air conditioner. It energizes a low-voltage control circuit—typically a transformer-fed loop that signals relays, gas valves, contactors, or zone valves. The heavy current that runs a compressor or a blower does not pass through the wall control. This separation is why thermostat wire can be thin and why a thermostat can be damaged by a short even though it never handles line voltage.

Other wall controls follow a similar logic but with different signal types. A line-voltage thermostat for baseboard heat or a wall heater does switch the actual load current, which is why it has larger terminals and thicker conductors. Humidistats, ventilation timers, zone dampers, and boiler reset controls may be low-voltage as well, but they can also be part of a communicating network where the wall device sends digital messages rather than closing a simple contact.

The category matters because it defines the wire. A low-voltage switching circuit needs two conductors plus whatever additional paths the manufacturer requires. A communicating control may need a dedicated power conductor and separate data conductors, and it may need them to be electrically clean—free of the voltage dips that occur when a large load starts. The wall cable is not interchangeable between these concepts.

Why the Cable in the Wall Often Decides the Outcome

Most older homes were wired with thermostat cable sized for a single-stage, two-wire or four-wire control circuit. The installer ran the conductors the equipment of that era needed, and no more. When a modern thermostat requires a common conductor to power its display and Wi-Fi radio continuously, the existing cable may not have a spare conductor. Electricians sometimes repurpose the fan conductor or borrow a wire, but that changes how the equipment responds and can leave the fan running when it should not.

The difference between switching power and drawing power

A mechanical thermostat draws almost no current. It closes a circuit and the equipment supplies its own control power. A smart or programmable thermostat draws current to run its electronics, and it needs a return path. In a two-wire heating-only circuit, the thermostat can sometimes steal a small amount of current through the load without activating it, but that trick depends on the load characteristics and is not universal. On equipment that is sensitive to that leakage, the result can be nuisance calls, chattering relays, or a control that never fully powers up.

Why the common wire matters

The common wire gives the thermostat a direct connection back to the transformer, so operating current returns through a dedicated conductor instead of through the heating or cooling load. Where the cable has a spare conductor and the equipment provides an accessible transformer terminal, adding that common path is straightforward. Where it does not, the options are running new cable, using an add-on module that the equipment manufacturer permits, or choosing a control that does not require continuous power. Each option has different consequences for reliability and for how the system behaves during a power interruption.

What Can Go Wrong After Installation

• Short cycling: the control may be reading a temperature that does not match the room because the wall plate is sealed against an exterior wall cavity or sits near a supply register.
• Clock or schedule loss: the control is losing power when the equipment cycles, often a sign that the return path is inadequate.
• Equipment running with the control off: a misidentified conductor or a borrowed wire can keep a circuit energized when the thermostat thinks it is idle.
• Intermittent calls: loose terminal screws or stranded wire clamped under a screw intended for solid wire can produce a connection that changes with temperature and vibration.
• No response at all: the control may be functional but wired to the wrong terminal, or the equipment may be in a lockout condition that the wall device cannot override.

These symptoms share a pattern. The wall control is reporting or requesting something, and the system is interpreting that information differently than the occupant expects. Diagnosing it means tracing the signal path, not just replacing the control again.

Reading the Circuit Before Changing Anything

Start by identifying the equipment type and the control voltage. A gas furnace, an air handler, a heat pump, a boiler, and a baseboard heater each use different control conventions. Photograph the existing wiring before removing it, including the terminal labels and the color of each conductor as it enters the wall plate. Colors are not a reliable code; installers use whatever cable is on the truck, and a previous repair may have changed the convention.

Check the control's requirements against the conductors present. Count the wires, note whether any are unused and capped, and confirm whether the equipment provides a terminal for the power return. If the wall plate has a fuse or a small transformer behind it, understand what that component does before disturbing it. Some controls have a low-voltage side and a line-voltage side in the same box, and mixing them up is a common and hazardous mistake.

For low-voltage wiring, de-energizing the equipment at its service switch or breaker is still the appropriate step before working on terminals, because the transformer remains energized even when the system is not calling for heat or cooling. A non-contact voltage tester can help identify what is live, but it should not be treated as proof that a circuit is safe to touch. Testing at the transformer and at the equipment control board is more informative than testing at the wall plate alone.

If the wall cavity contains line-voltage conductors, or if the control box contains both line-voltage and low-voltage wiring, that is a boundary worth respecting. Line-voltage thermostats, boiler controls, and any device that interrupts a 120-volt or 240-volt circuit involve shock and fire risk beyond ordinary low-voltage work. A qualified electrician or heating technician should handle those connections and any uncertainty about which conductors are which.

Why Sensors and Location Matter as Much as Wiring

Even a correctly wired thermostat can produce poor results if it is measuring the wrong air. Wall controls located on exterior walls, inside cabinets, above doorways, in direct sunlight, or near lamps and appliances read conditions that do not represent the occupied space. Drafts through an unsealed wall penetration can cool the back of the control and cause it to call for heat longer than necessary. Sealing the wire opening and choosing a location with representative air movement often improves comfort more than changing the device.

Remote sensors and averaging sensors address this by moving the measurement point away from the wall plate. They require the same attention to conductor count and compatibility. A sensor that is not supported by the control, or wired to the wrong terminals, will produce readings that look plausible but are not controlling the system correctly.

When the Wall Control Is Not the Problem

A thermostat that seems to fail repeatedly may be responding to a system issue rather than causing it. Short cycling, uneven temperatures, and frequent on-off operation can come from oversized equipment, restricted airflow, a failing blower, low refrigerant, a dirty flame sensor, or a zone valve that is not fully closing. Replacing the control in those cases does not correct the underlying condition, and the new device will behave the same way.

Similarly, a control that loses its schedule may be experiencing power interruptions from the equipment itself, not from a defective battery. Before assuming the thermostat is faulty, confirm that the equipment is operating within its expected cycle and that no safeties are tripping.

A Reasonable DIY Boundary

Homeowners can generally handle cleaning a wall control, replacing batteries, updating settings, tightening accessible terminal screws on low-voltage wiring after de-energizing the equipment, and swapping a compatible low-voltage control when the existing cable provides the required conductors. They should stop and call a qualified technician or electrician when the work involves line voltage, an unknown cable with mixed conductors, a control that requires new cable, a boiler or heat pump with unfamiliar control terminals, or any system that has repeated electrical faults.

For low-voltage terminal work, a simple insulated screwdriver of the correct size fits the terminals better than a bulky general-purpose driver and reduces the chance of bridging adjacent terminals. A magnetic screwdriver set is one convenient way to keep the correct tip available, though the tool does not change the underlying rule: the circuit determines what the control can do, and the wire in the wall determines what the circuit can support.

The Point of the Wall Plate

Thermostats and wall controls are not appliances that happen to sit on a wall. They are the visible end of a control circuit engineered around a particular signal, a particular power source, and a particular set of conductors. The device can only work as well as that circuit allows. When a replacement misbehaves, the productive question is not which thermostat is better, but what the existing circuit provides and what the new control requires. Answering that question first is what makes the installation durable instead of a repeated swap.
