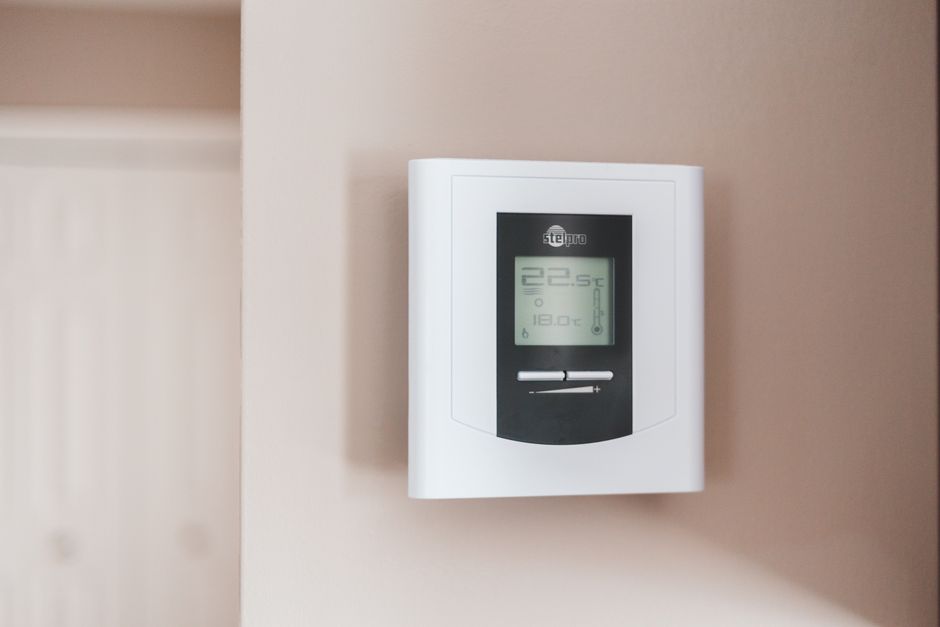

Why Thermostat Placement and Voltage Checks Matter Before You Replace a Wall Control

The Problem Usually Starts With a Reading, Not a Replacement

A thermostat that reads a room warmer than it feels, a wall control that only works when you press hard, a heater that short-cycles, or a new smart thermostat that never seems to satisfy the setpoint — these complaints often get answered with a trip to the store. But the wall is a measuring environment as much as an electrical one. A thermostat is a sensor, a switch, and sometimes a small computer, and it lives inside a cavity that also contains framing, insulation, air leaks, and wiring. Before you buy anything, a few low-risk measurements tell you whether the problem is the device, the installation location, or the wiring feeding it.

The short answer: most residential thermostat problems fall into three categories — bad sensing environment, insufficient or incorrect control voltage, and incompatible wiring. You can distinguish them with a thermometer, a voltage tester, and the existing wire count, without opening a panel or touching line-voltage equipment.

What a Wall Control Actually Measures

A conventional thermostat does not measure your comfort. It measures the air temperature at its own location and closes or opens a low-voltage circuit based on that reading. If the wall behind it contains a supply duct, a chimney chase, or an exterior corner with poor insulation, the thermostat's reference temperature can differ from the middle of the room by a meaningful margin. That is not a malfunction. It is the device doing exactly what it was designed to do in a bad spot.

Why interior walls and exterior walls behave differently

An exterior wall in a cold climate runs cooler than the room air because heat flows outward through the assembly. A thermostat mounted there reads low, the heating system runs longer, and the rest of the room overheats. The reverse happens in a hot climate where a sun-exposed wall stays warm into the evening. Interior walls shared with a hallway or closet tend to track room air more closely, which is why thermostat rough-in plans often specify an interior location away from direct sun, doors, and supply registers.

Drafts, lamps, and appliances

A thermostat near a frequently used exterior door senses the door swing, not the room. A lamp or television within a couple of feet radiates heat onto the plastic housing. These effects are measurable: a simple thermometer placed at the thermostat and one placed at seated height in the center of the room will often disagree. That difference is the single most useful pre-replacement measurement you can take.

Voltage Classes You Should Identify Before Touching Wires

Residential thermostats and wall controls are not all the same class of device. Most forced-air furnaces, air conditioners, and heat pumps use a low-voltage control circuit — commonly 24 volts AC in North American residential systems — which is why the wire is thin and the terminals are small. Line-voltage thermostats, often used for electric baseboard heaters and some in-wall heaters, switch mains voltage directly. The two are not interchangeable, and the distinction matters for safety, not just compatibility.

Before removing an existing control, identify which class you have by looking at the wire gauge and reading the device label. Thin multiconductor cable with small screw terminals points to low voltage. Heavier conductors with wire nuts usually indicate line voltage. Using a non-contact voltage tester near the conductors is a useful first check, but it is not proof of a de-energized circuit. Line-voltage work should be done only after the correct circuit is shut off and verified with a proper meter, and if you are uncertain which breaker controls it, that is a signal to stop and bring in a qualified electrician.

Why control voltage matters even for smart devices

Smart thermostats and programmable wall controls often need a continuous power source to run their electronics. In low-voltage systems, this is commonly supplied by a dedicated conductor from the air handler, sometimes called a C-wire. If the existing cable bundle does not include one, some devices can draw power intermittently from the heating and cooling call wires, but that arrangement depends on the equipment and can cause nuisance behavior in some systems. You do not need to invent a C-wire — you need to identify whether one exists before assuming a new device will behave the way the marketing suggests.

Diagnosing the Complaint Before Replacing the Control

The goal of pre-replacement diagnosis is to separate three possibilities: the device is faulty, the sensing location is wrong, or the wiring cannot support what you want to install.

• Device fault: the thermostat ignores setpoint changes, the display is erratic, or the contacts no longer close reliably. These are internal failures.
• Location fault: the system satisfies the thermostat but not the room, or runs in short bursts because the thermostat sees temperature changes that the room does not.
• Wiring fault: the system never calls for heat or cool, blows a low-voltage fuse repeatedly, or the new device cannot power itself.

A simple comparison thermometer reading at the wall versus at the occupied zone distinguishes location problems from device problems. If the two readings track closely and the system still misbehaves, the issue is more likely device or wiring.

Reading the existing wiring without guessing

Photograph the terminal connections before removing anything, and note the conductor colors and which terminals they occupy. Wire colors are conventional, not guaranteed, especially in older homes where a previous owner or technician may have repurposed conductors. The number of conductors in the cable, not the colors alone, tells you what functions are available. If only two conductors exist, you have a simple heating or cooling call circuit with no continuous power. If five or more are present, a C-wire or additional functions may be available, but you still need to confirm what each conductor actually connects to at the equipment.

When Relocating the Control Is the Real Fix

If the diagnosis points to location rather than the device, replacement with an identical thermostat will reproduce the same complaint. Moving a low-voltage thermostat a few feet to an interior wall is a moderate project involving drywall patching, cable routing, and reconnection at the equipment. It is within reach of a careful homeowner who is comfortable with low-voltage wiring, but it requires access above, below, or behind the wall and an understanding of where the existing cable runs. Line-voltage controls are not a casual relocation project.

For patching the old opening after a move, ordinary drywall repair materials and careful finishing are adequate because the hole is cosmetic once the wiring is relocated. A drywall repair kit can simplify filling and blending the abandoned opening, provided the substrate is sound and the cavity is not carrying moisture or air leakage that should be addressed separately.

Compatibility Is More Than Terminal Count

Thermostats and wall controls interact with equipment in ways that terminal labels do not fully describe. Heat pumps with auxiliary or emergency heat, multi-stage furnaces, and systems with separate fan control may require specific terminal functions. A device that physically fits the wall plate may still not operate the equipment correctly if it cannot handle the system type. This is not a wiring defect; it is a control-logic mismatch, and it is one of the most common reasons a newly installed thermostat seems to "not work."

Before purchase, confirm the equipment type, the number of stages, and whether the system uses a reversing valve or auxiliary heat. That information is on the equipment data plate or in the installation manual, and it determines which thermostat categories are appropriate far more reliably than a product listing does.

What Should Trigger Professional Help

Low-voltage thermostat replacement is a reasonable homeowner task when the circuit class is clear, the wiring is documented, and the new device is compatible. Several situations change that conclusion. Any line-voltage control work, repeated low-voltage fuse failures, burned or discolored terminals, or equipment that behaves unpredictably after a replacement warrants an HVAC technician or electrician. If you cannot verify which circuit feeds a line-voltage control, or if the wiring inside the wall is damaged, aluminum, or of unknown origin, that is not a diagnostic puzzle to solve by trial and error.

Renters should also treat thermostat replacement as an alteration. Changing the control can affect the landlord's equipment, violate a lease, and complicate warranty coverage. Reversible adjustments like cleaning the existing device or improving airflow around it are safer first steps.

The Measurement Habit That Prevents Repeat Replacements

Thermostats and wall controls fail for unglamorous reasons: they sit in the wrong microclimate, they are fed by wiring that cannot support their electronics, or they are matched to equipment they were never designed to operate. Measuring the temperature at the wall against the temperature in the occupied space, identifying the voltage class and conductor count, and confirming equipment compatibility takes less time than a second trip to the store. Those readings do not make the installation decisions for you, but they tell you which problem you actually have — and that is what keeps a simple wall control from becoming a recurring one.
