Why Gutters Overflow at the End Cap and Not the Middle

The overflow that seems to come from nowhere

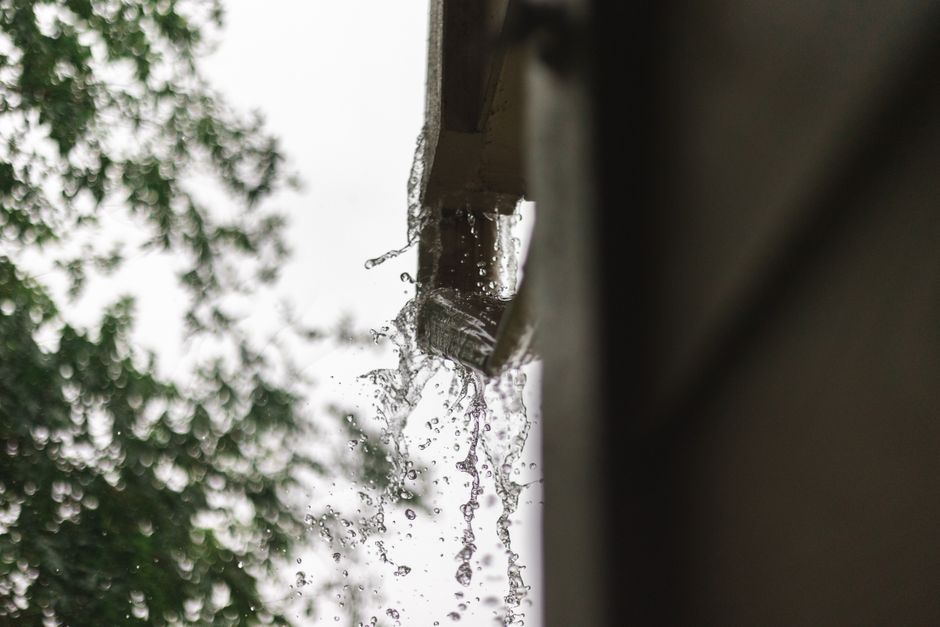

Water pours off the end of a gutter during a heavy rain, but the run of gutter just inches away is flowing normally. The trough is not sagging, the hangers look tight, and the downspout is not obviously blocked. Homeowners often respond by adding sealant to the end cap, increasing the number of hangers, or installing a larger downspout. Sometimes that helps. Often it does not, because the overflow is not a leak in the traditional sense. It is a hydraulic and geometric problem that develops at the end of the run, where flow, slope, and outlet capacity interact in ways the middle of the gutter never experiences.

Understanding why the end cap is the most overworked part of a gutter system explains why one fix works on one house and fails on the next. It also explains why the most common repair attempt, more sealant, can make the problem worse.

What a gutter actually does

A gutter is not a storage vessel. It is a collection and conveyance channel. Its job is to intercept water from the roof edge, move it horizontally with a slight slope, and hand it off to a downspout before it can spill over the front or back lip. Every part of that job depends on the water having somewhere to go and moving there efficiently.

Three conditions determine whether the water stays in the channel:

• The roof edge delivers water at a rate the gutter can accept.
• The gutter slope carries water toward the outlet.
• The outlet and downspout can discharge water faster than it arrives.

Most of the gutter run operates with a healthy margin on all three. The end segment does not. At the end, the water has already traveled the length of the run, and in some installations it has picked up volume from two roof planes, a valley, or a transition. The end cap itself is a solid wall where all of that moving water must stop and turn toward the downspout outlet. That transition is where the weakest links appear.

Why the end cap becomes a bottleneck

The end cap is not the problem by itself. It becomes the visible failure point because it is the terminal boundary of a system that has already given up its capacity upstream.

Slope is cumulative, not local

A gutter needs slope to move water. That slope is often described in fractions of an inch per foot, but the actual value depends on the run length, the local climate, and how the installer set the hangers. What matters here is that slope accumulates. A small variation at the high end of the run can mean the last several feet are nearly flat or, in some cases, sloping slightly backward relative to the outlet. Water arriving at a flat or back-sloped end segment has no driving force to move it forward. It ponds, rises, and eventually spills over the lip or pushes past the end cap.

This is why the overflow appears at the end. The middle of the gutter drains fine because the water is still moving downhill. By the time it reaches the last stretch, the available slope has been used up.

Undersized outlets and downspouts

The outlet and downspout are sized for typical rainfall intensity. When rain arrives faster than the outlet can discharge, water backs up through the entire run. The backwater effect is most visible at the end cap because that is where the water has the farthest to travel to reach the outlet and where any slight low spot becomes a reservoir.

An undersized or partially obstructed downspout turns the gutter into a bathtub. The visible symptom is end-cap overflow, but the cause is outlet capacity, not the end cap.

Sealant is not a substitute for slope

End caps are often sealed with a flexible sealant because the joint between the cap and the gutter body is a potential leak point. That sealant has a legitimate role: it stops minor water from weeping out of a mechanical joint. It does not create slope, and it does not increase outlet capacity. When water is backing up because of geometry or capacity, the sealant gets blamed and reapplied, but the real problem is upstream.

Layering more sealant over a wet, dirty joint also tends to fail. Flexible sealants bond best to clean, dry, compatible surfaces. A joint that is already wet, contaminated with debris, or coated with an incompatible old sealant may not accept a new bead. The result is a repair that looks complete but fails the next time the gutter fills.

The role of debris and flow restriction

Debris does not distribute itself evenly. Leaves, grit, and roof granules tend to accumulate near the end of the run because that is where the water slows down. At the same time, the outlet strainer or drop outlet can be partially blocked by the same material. The combination produces a predictable pattern: a clear middle section, a debris-loaded end segment, and a restricted outlet.

Cleaning the gutter helps, but only if the outlet and downspout are cleared as well. A gutter that is clean on top but draining into a blocked downspout will still overflow at the end cap.

Common misdiagnoses

Several repair habits appear repeatedly on overflowing gutters, and most of them address symptoms rather than causes.

• Sealing the end cap repeatedly. If water is backing up because of slope or outlet restriction, the cap is not the failure. Adding sealant to a joint that is not leaking wastes time and can trap moisture against the joint.
• Adding hangers without checking slope. More hangers can stabilize a sagging gutter, which is useful. But if the gutter is already sloping the wrong way at the end, more hangers do not fix the direction of flow.
• Installing a larger downspout without addressing the outlet. A larger downspout cannot discharge water faster than the outlet opening lets it in. The restriction may be at the outlet, not the pipe.
• Assuming the roof is the problem. A roof edge that delivers water too far out or a drip edge that directs water behind the gutter can overload the system. This is a real possibility, but it should be verified rather than assumed.

How to diagnose before repairing

The most useful information comes from low-risk observation during or just after rain. Look for where the water actually spills: over the front lip, over the back lip, or out of the end cap joint. Each pattern points to a different cause. Water spilling over the front lip near the end suggests the water level is rising because the outlet cannot keep up. Water dripping from the end cap joint suggests a failed seal or a mechanical gap, but only if the water level is not already high enough to overflow.

Check the outlet and downspout for restriction. A downspout that gurgles, backs up, or drains slowly is a strong indication of blockage or undersizing. Check the slope of the last several feet of gutter. A gutter that is flat or sloping away from the outlet in the final section will pond even when the rest of the run looks correct.

If the gutter is clean, the outlet is clear, and the slope terminates correctly at the outlet, then the issue may be capacity: the roof area is delivering more water than the system was designed to handle. That condition is not fixed by sealant or hangers. It may require a larger outlet, an additional downspout, or a professional evaluation of the roof and drainage layout.

When a repair is appropriate

User-level maintenance on gutters includes removing debris, flushing the run and downspout with a hose, tightening accessible hangers, and replacing a failed end-cap sealant where the joint is genuinely leaking and the water level is not backing up. These are modest, reversible tasks.

Some repairs go beyond that. Correcting slope along a long run may require repositioning hangers and verifying the new slope with a level. Adding an outlet or downspout involves cutting the gutter, sealing new joints, and ensuring the new discharge does not create a new water problem at the foundation. Roof-edge flashing and drip-edge problems belong to the roof assembly. And any work at height near electrical service, on a steep roof, or with uncertain footing carries serious fall risk and is better handled by a qualified professional.

For sealing a genuinely leaking end-cap joint on a clean, dry gutter, a flexible exterior-grade sealant is the appropriate category of material. A product such as silicone caulk can be part of that repair, but it should be applied only after the joint is clean, dry, and confirmed to be the actual source of the leak. It will not correct a capacity or slope problem, and it should not be used to cover active backup.

What durable repair actually requires

A gutter that overflows at the end cap during heavy rain is usually telling you that the system has lost its margin. The water is arriving faster than it can leave, or the last stretch of the run no longer carries it to the outlet. Sealant, additional hangers, and larger downspouts address only one part of that equation at a time. Durable repair depends on restoring the function of the whole path: water must be collected, moved with adequate slope, and discharged without restriction.

That means diagnosing the specific failure, whether it is slope, blockage, outlet capacity, or roof-edge delivery, before choosing a fix. It also means recognizing when the system is simply undersized for the roof area it serves, because no amount of maintenance will change the volume of rain. The end cap is the symptom. The capacity and geometry of the system are the cause.
