Why a Non-Contact Voltage Tester Cannot Prove an Outlet Is Dead

The Tool That Creates More Confidence Than It Deserves

Few household tools inspire as much misplaced trust as the pen-shaped voltage tester. It beeps, it lights up, and it feels definitive. The homeowner holds it near a receptacle, hears nothing, and concludes the circuit is de-energized. Then the work begins, and the shock happens anyway.

The misunderstanding is not that the tester is useless. It is a genuinely useful diagnostic instrument when its function is understood. The problem is that a non-contact voltage tester detects the presence of an electric field near a conductor. It does not confirm the absence of voltage. Those are two different jobs, and confusing them is one of the most common and most dangerous mistakes in household electrical work.

Understanding why requires looking at how the tool actually operates, what its limitations are, and how a circuit can be energized in ways the tester will not report.

How a Non-Contact Tester Actually Detects Voltage

Inside the tip of a non-contact tester is a sensor that responds to the oscillating electric field surrounding an energized conductor carrying alternating current. When the tip is brought near a hot wire, the field induces a small signal in the sensor, and the tester lights up or beeps.

This is a proximity effect, not a direct measurement. The tester never touches the conductor. It infers the presence of voltage from the field in the air around it. That design is what makes the tool safe and convenient. It is also what makes it unreliable as a proof of absence.

Several conditions can prevent the tester from indicating voltage that is genuinely present:

• The tip is too far from the conductor, or the wire is buried behind sheathing, drywall, or a metal box that shields the field.
• The conductor is inside a grounded metal enclosure or conduit, which can block the field from reaching the sensor.
• The tester is held at the wrong orientation relative to the conductor.
• The battery is weak, but the device still functions intermittently.
• The tester has a sensitivity threshold that a particular voltage or field strength does not exceed.
• Two conductors carrying the same voltage sit close together, cancelling field effects at the sensor position.

None of these scenarios means the circuit is dead. They mean the tester cannot see it, which is not the same thing.

The Difference Between Absence of Signal and Absence of Voltage

An electrical circuit is energized whenever a complete path exists between a source of voltage and the point being tested. Turning off a switch or tripping a breaker interrupts that path in a specific place, but it does not necessarily remove voltage from every conductor in the box.

Consider a common receptacle. It may contain multiple cables, and those cables may serve different circuits. The breaker you switched off may control only one of them. Another cable in the same box may still be energized from a different breaker or from a different panel. A non-contact tester passed over the front of the receptacle might miss the live conductor behind the device entirely.

Multi-wire branch circuits, shared neutrals, and switch loops add further complications. In some wiring arrangements, a neutral conductor can be carrying current and can carry voltage relative to ground even when the associated hot conductor has been de-energized at the breaker. Opening a neutral in a multi-wire circuit can create a dangerous condition that a non-contact tester will not warn about.

There is also the matter of capacitive coupling. When a de-energized conductor runs parallel to an energized one for a distance, it can pick up a small induced voltage. This can confuse testers in both directions. It can cause a false positive on a dead wire, or it can produce no signal on a wire that is truly live depending on the geometry.

The lesson is not that every homeowner must master circuit topology. It is that no single handheld instrument certifies a circuit as safe to touch. The tester answers one narrow question, and it answers it imperfectly.

What Actually Confirms a Circuit Is De-Energized

For user-level work such as replacing a switch or receptacle cover, the safer approach combines multiple independent checks rather than relying on one device. The sequence matters as much as the instruments.

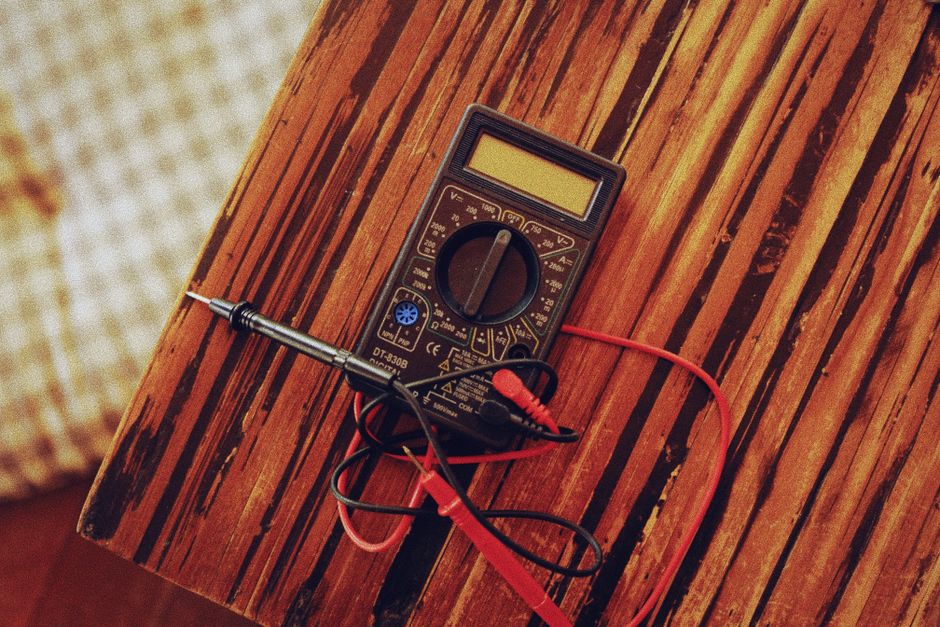

First, de-energize at the breaker and confirm the correct breaker by observing that the intended device or light is off. Second, use a non-contact tester as a preliminary screening tool at the box. Third, use a contact-type voltage tester or a multimeter set to the appropriate AC voltage range to measure between the conductors and between each conductor and ground. The contact tester draws a small current through its own internal path, which makes it far less susceptible to induced voltage than the non-contact type.

A contact tester can still mislead if it is used incorrectly. It should be verified on a known live source first to confirm it is functioning. It should be applied to every combination of conductors in the box, not simply the one you expect to work with. And the results should be interpreted with the circuit topology in mind.

Even after all of this, some situations remain beyond safe DIY confirmation. If the box contains an unfamiliar number of cables, if the wiring appears modified or amateurish, if aluminum conductors are present, if the circuit behavior does not match the panel labeling, or if there is any uncertainty about what is feeding what, the appropriate response is to stop and call a qualified electrician. No tester makes an unfamiliar circuit safe.

Why This Matters Beyond the Tester Itself

The voltage tester misunderstanding is a specific case of a broader problem in home electrical work: treating a diagnostic instrument as a safety guarantee. Instruments reduce uncertainty. They do not eliminate it. A stud finder does not identify every concealed hazard behind drywall. A moisture meter does not prove the source of a stain. A voltage tester does not prove a wire is dead.

This is why de-energization is a process, not a single action. The process includes understanding the circuit as well as circumstances allow, isolating it at the source, verifying the isolation through more than one method, and maintaining the assumption that unseen conductors may still be live until verified otherwise. Anyone who treats a silent tester as permission to grab a wire has skipped most of that process.

For homeowners who change a light fixture or swap a switch, the practical takeaway is straightforward. Use the non-contact tester to screen, then confirm with a contact instrument, and verify the instrument on a known live circuit before trusting it. Apply the tester to every conductor in the box. Assume nothing about which breaker controls which wire.

A voltage tester pen is a reasonable addition to a household tool collection for quick screening, but it belongs alongside a contact tester and a working understanding of its limits, not in place of them.

When to Hand the Work to an Electrician

Some electrical tasks are within reach for a careful homeowner who understands the boundaries. Replacing a standard receptacle or switch, changing a cover plate, or resetting a tripped GFCI are user-level tasks when the circuit is properly identified and de-energized. Anything more complex deserves professional assessment.

Recurring breaker trips, warm or discolored receptacles, buzzing or crackling sounds, burning odors, damaged insulation, water exposure near electrical components, aluminum branch-circuit wiring, and any uncertainty about circuit wiring should be referred to a licensed electrician. These are not conditions to diagnose with a tester. They are conditions that require experience, proper instruments, and often the authority to make code-relevant decisions.

Electrical codes differ by jurisdiction and change over time. What is permitted in one location may not be in another. A qualified electrician operating locally is in a position to apply current requirements, inspect for hidden problems, and ensure that the work is done safely.

The Real Lesson

A non-contact voltage tester is a screening tool. It senses an electric field, not the absence of voltage. Its silence is not proof of safety. Confirmation of de-energization depends on multiple methods, an understanding of circuit topology, and a willingness to stop when the situation exceeds what the homeowner can reliably assess.

The tool itself is not the problem. The problem is the assumption that one beep or one silence settles the question. In electrical work, the cost of that assumption is measured in injuries. Treating the tester as one piece of evidence rather than a verdict is the difference between a useful instrument and a dangerous false confidence.
