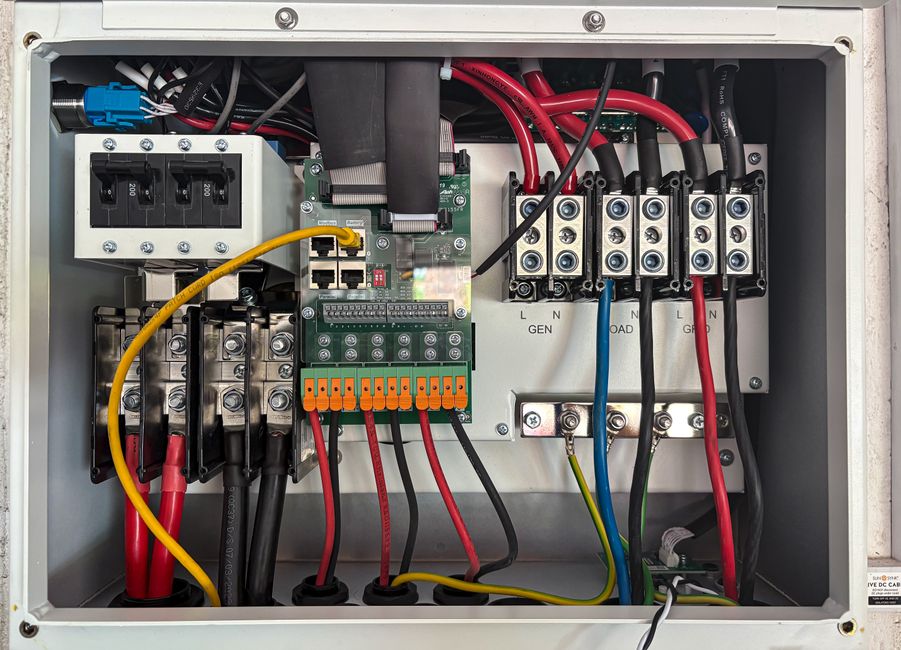

What Actually Carries the Load in a GFCI or AFCI Circuit

The Breaker Isn't the Thing Doing the Work

When a receptacle near a bathroom sink loses power and cannot be reset, or when a bedroom circuit trips for no obvious reason, the natural assumption is that the circuit breaker is weak, the wiring is bad, or the outlet has failed. In most cases, none of those is the actual problem. The confusion comes from not knowing what each protective device is built to sense, and therefore what it is built to interrupt. A GFCI and an AFCI look similar at the wall plate and both end up opening a circuit, but they monitor entirely different conditions. What carries the load inside each device, and what causes them to let a fault through anyway, is a question of sensing geometry and current balance, not just amperage.

The load itself — the current feeding lights, tools, or appliances — travels through conductors and contacts that are sized for the circuit. The protective device sits in that path like a gatekeeper. It does not carry the load differently than a plain receptacle or breaker does. Its job is to watch that current and decide, in a fraction of a second, whether the flow is still going where it is supposed to.

What a GFCI Actually Measures

A ground-fault circuit interrupter compares the current leaving on the hot conductor with the current returning on the neutral conductor. In a healthy circuit those two values are essentially equal. If a person contacts an energized part or current leaks to ground through water, damaged insulation, or a conductive path, some current returns through a route other than the neutral. The GFCI senses that imbalance and opens the circuit.

That is why a GFCI protects people. It does not wait for a short circuit to develop. It responds to current that has escaped the intended loop — current that may be traveling through a body, a wet floor, or a grounded surface. The sensing mechanism is a small current transformer that encircles both conductors. When the magnetic fields of the outgoing and returning currents cancel, no signal is produced. When they do not cancel, the device trips.

Why nuisance trips happen

GFCIs are sensitive by design, and several ordinary conditions can create a real imbalance rather than a phantom one. Moisture inside a receptacle box, degraded insulation on an appliance cord, a motor with leakage to its frame, or several downstream devices sharing a slightly leaky path can all produce enough imbalance to trip. A GFCI that trips when a specific appliance starts is telling you something about that appliance or the moisture around it, not necessarily about the GFCI itself. Repeatedly resetting it without investigating is a temporary measure at best.

What an AFCI Is Listening For

An arc-fault circuit interrupter monitors the waveform of the current for signatures that resemble arcing. A series arc can occur where a conductor is damaged, a connection has loosened, or a cord is pinched. A parallel arc can occur between conductors. These arcs may not draw enough current to trip a standard breaker, and they may not create a ground imbalance that a GFCI would sense. The AFCI is looking at a different layer of the same current.

Because arcing signatures overlap with the normal electrical noise of motors, dimmers, and switching power supplies, AFCIs use processing to distinguish a dangerous arc from ordinary operation. That processing is why an AFCI is not simply a more sensitive breaker and cannot be substituted with one.

The limits of arc detection

An AFCI is not a moisture detector, a thermal detector, or a substitute for grounding. It addresses a specific failure mode. A loose neutral inside a junction box, a degraded backstab connection, or a damaged extension cord may or may not produce an arcing signature that trips it. The device reduces risk; it does not certify the wiring downstream.

The Load Path Through the Device

In a GFCI receptacle, the incoming feed lands on the line terminals, and downstream wiring that should be protected lands on the load terminals. Current passes through internal contacts and a sensing assembly. The load terminals exist so that additional receptacles can inherit the protection. If wiring is mislanded — feed on load, protected devices on line — the GFCI may still function at its own face but provide no protection downstream, or it may not reset at all.

In a GFCI or AFCI circuit breaker, the current path runs through the breaker's internal contacts and sensing electronics before leaving the panel to the branch circuit. The panel itself is not a user-serviceable environment. Opening it to move conductors, replace a breaker, or chase a tripping condition involves energized parts, limited working space, and rules about who may legally do the work. That boundary is not arbitrary. It reflects the fact that a mistake at the panel can energize an entire circuit or defeat the protection the rest of the system depends on.

Grounding and protection are different jobs

A common misunderstanding is that a GFCI creates a ground where none exists. It does not. It detects an imbalance and interrupts. Equipment grounding provides a low-impedance fault path back to the source so that a breaker can clear a fault quickly. GFCI and AFCI protection reduce certain risks but do not replace grounding, and grounding does not replace them. Surge protection is a separate function again. Each layer addresses a different hazard.

Why the Same Symptom Has Several Causes

A tripping device, a dead receptacle, or a warm wall plate can come from different underlying problems, and the evidence needed to distinguish them is usually low-risk observation:

• Does the device trip immediately on reset with nothing plugged in? That points toward wiring, moisture, or the device itself.
• Does it trip only when a specific appliance runs? That points toward that appliance or its cord.
• Does it trip randomly across the day? That may involve shared neutrals, downstream faults, or load conditions.
• Is there discoloration, a burning smell, or heat at the face? That is a stop-using-it condition.

Non-contact voltage testers and receptacle testers are useful for orientation, but they are not proof that a circuit is de-energized or that hidden wiring is intact. A tester that reads no voltage on one conductor does not guarantee the box is safe. For any work beyond pressing a reset button or replacing a plug-in device, the appropriate step is to stop and involve a qualified electrician.

When the Problem Is the Wiring, Not the Device

Older homes present a specific complication. Wiring methods, grounding practices, and box fill from earlier eras do not always match current assumptions. A GFCI can sometimes be installed on an ungrounded circuit to provide shock protection, but that is a code-and-jurisdiction question, not a universal rule, and it does not create a ground. Aluminum branch-circuit conductors, backstabbed connections, and deteriorated insulation are conditions that deserve professional evaluation rather than a device swap.

It is also worth separating the device from what it protects. Replacing a tripping GFCI with a standard receptacle would remove the protection and is not a repair. Replacing an AFCI with a standard breaker because it keeps tripping addresses the annoyance, not the arcing condition that may be present. The protection is only useful if it stays in place and functions.

Testing and resetting responsibly

GFCIs and AFCIs have test and reset functions intended for routine verification. Pressing test should cause the device to trip; pressing reset should restore it. If it will not reset, will not trip when tested, or trips immediately with no load, the device or the circuit needs attention. Repeatedly resetting a device that trips under load is not a diagnosis. A plug-in circuit tester or a non-contact voltage pen can help confirm which downstream outlets are affected and whether a device is receiving power at all, but these readings are starting points, not conclusions. One instrument reading does not prove an unseen wiring condition.

What Homeowners Can Reasonably Do

User-level actions include pressing test and reset, unplugging suspect appliances to isolate a fault, noting which outlets and rooms are involved, checking for moisture around an outdoor or bathroom device, and replacing a damaged plug-in cord. These steps are diagnostic and reversible.

Work inside a receptacle box, at a panel, or on branch-circuit conductors is a different category. It involves de-energization that must be verified, conductor identification, and connections that must be made correctly to preserve protection. When a device trips repeatedly, when there is heat or odor, when wiring is aluminum or of unknown age, when a circuit has no equipment ground, or when the reader is unsure how the circuit is arranged, a qualified electrician should make the call. The consequence of guessing wrong in this area is not cosmetic.

The Point of the Protection

GFCI and AFCI devices are not interchangeable, and neither is a substitute for good wiring, grounding, or surge protection. A GFCI watches the balance of current and responds to current leaving its intended path. An AFCI watches the shape of the current and responds to arcing signatures. Both sit in the load path and both open it when their specific condition appears. Understanding which condition each one senses is what turns a confusing repeated trip into a solvable question, and it is also what keeps the repair within the boundary where a homeowner can safely operate.
