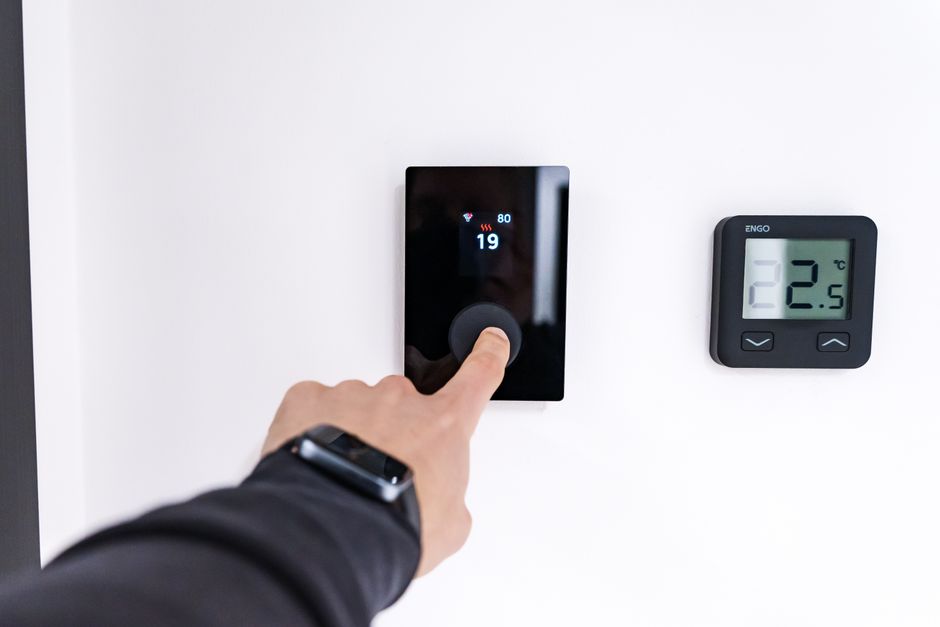

Why Some Smart Thermostat DIY Fixes Are Electrically Unsafe

A smart thermostat looks like a tempting DIY project. The old one pops off a wall plate, the new one has color-coded wires, and a few videos make the swap look like changing a light fixture. That impression is misleading. A thermostat is not a simple switch on a low-voltage toy circuit in every home. In many houses, the same small bundle of wires carries a mix of low-voltage control signals, transformer power, relay currents, and sometimes line-voltage mains power directly. Understanding what those wires actually do explains why certain shortcut fixes are not just risky to your HVAC equipment but genuinely dangerous to the person holding the screwdriver.

What a thermostat actually controls

A conventional thermostat is a set of switches that tell heating and cooling equipment when to run. When the temperature drifts below the set point, the thermostat closes a circuit to the furnace or air handler, which then starts a sequence: the control board energizes the blower, opens the gas valve or engages heating elements, and monitors safety switches. For cooling, the thermostat closes a different circuit that starts the outdoor compressor and the indoor blower.

A smart thermostat replaces those mechanical switches with electronic relays and low-power logic. It still has to close the same circuits. The difference is that the electronics need their own power to run the display, Wi-Fi radio, and processor, and that is where many of the DIY problems begin.

Why the wires matter more than the display

In a typical low-voltage system, the thermostat wires carry around 24 volts AC from a transformer, usually located in the furnace or air handler. That is far lower than household mains voltage, which is why thermostat wiring is often described as safe to handle. But “low voltage” does not mean “always harmless” or “always simple.” Those wires interconnect with the equipment's control board, and a miswire can energize a circuit that was never meant to receive current, short the transformer, or send power into a terminal designed only for a signal.

The classic example is the C wire, or common wire. Many smart thermostats need a continuous return path to the transformer so they can draw a small standby current. Older homes frequently have only four wires: R, W, Y, and G. Without a C wire, the thermostat may try to steal power through the heating or cooling circuit, which can cause erratic operation, chattering relays, or a furnace that short-cycles. A common DIY fix is to repurpose the fan wire or connect the C terminal to a nearby wire without verifying where it terminates. That can backfeed the blower circuit or create a path the control board was not designed to handle.

The dangerous shortcuts people try

Borrowing a wire that is not a common

Some guides suggest using the G wire as a C wire if the fan is not needed independently. It can appear to work, because the thermostat gets power. But on many systems, the G terminal also participates in blower control during heating and cooling, and the result can be a fan that runs when it should not, a compressor that starts without the indoor blower, or a control board that sees conflicting signals. In cooling mode, running the compressor without indoor airflow can cause the evaporator coil to freeze or the compressor to overheat. These are equipment-damage outcomes that develop over time, not always immediately.

Jumpering terminals to force a call

When a system will not start, homeowners sometimes jumper R to W or R to Y at the thermostat to “test” the furnace or air conditioner. That bypasses the thermostat entirely and sends a continuous call for heat or cooling. If the thermostat was already suspect, this can confirm a symptom, but it also removes the temperature limit that normally stops the cycle. A furnace left running on a jumped call can overheat, and a compressor left running can build pressure until a safety trips or a component fails. More importantly, if the wiring is misidentified, the jumper can send power into a terminal that has no business receiving it.

Adding a transformer without isolation

Some smart thermostats can be powered by an external plug-in transformer when no C wire exists. That is a legitimate solution when it is installed correctly, with the transformer output matched to the thermostat's requirements and the wiring isolated from the HVAC transformer. The unsafe version is tying two transformers together without understanding their phasing. If the 24-volt AC supplies are not isolated properly, they can fight each other, overheat, or create a voltage path that damages the thermostat, the control board, or both. This is a wiring-design problem, not a color-matching problem.

When mains voltage enters the picture

Not every thermostat runs on 24 volts. Electric baseboard heaters, some wall heaters, and certain line-voltage systems use thermostats that switch mains voltage directly. These thermostats contain line-voltage wiring, and the conductors can carry 120 or 240 volts. A smart thermostat designed for low-voltage HVAC is not compatible with these systems, and attempting to connect one is a serious electrical hazard. The same applies to heat pumps with auxiliary or emergency heat stages, dual-fuel systems, and some boiler controls where the wiring scheme is more complex than a simple four-wire setup.

The reason this matters is that the user cannot always tell by looking. Thermostat wire is often the same gauge and color regardless of what it carries. The only reliable way to know is to read the existing thermostat's markings, check the equipment nameplate, or consult the manual for the specific model. Assuming that all thermostat wiring is low voltage is one of the most common and most consequential mistakes in DIY thermostat work.

What is safe to do yourself

There is a meaningful line between user-level tasks and work that belongs to a qualified technician. Safe tasks generally include turning off power at the furnace switch or breaker before touching wiring, photographing the existing terminal connections before removal, replacing a thermostat with one that matches the existing wiring configuration, and following the manufacturer's installation instructions for that specific model. Checking whether a C wire is present and whether the transformer can support the new thermostat's standby draw is reasonable if you can identify the terminals from the equipment documentation.

What is not safe is improvising a common wire from an unknown conductor, jumpering terminals to force operation, combining transformers, connecting a low-voltage smart thermostat to a line-voltage circuit, or working inside the furnace or air handler cabinet where mains voltage and control wiring share space. If the wiring does not match the new thermostat's requirements, the responsible next step is to have a qualified HVAC technician run a proper C wire or install an appropriate isolation transformer. That is a small, defined job compared with the cost of a failed control board or a compressor.

Why the risk is easy to underestimate

Smart thermostats are marketed as consumer electronics, so they invite consumer-electronics habits. But the thermostat is the interface between a low-power logic board and equipment that may contain gas valves, ignition systems, high-voltage blowers, and compressors. The wires are small, the voltages are often modest, and the system may appear to work after a rough installation. That apparent success is exactly what makes the shortcuts tempting. Problems often surface later as short cycling, frozen coils, repeated breaker trips, or a control board that fails after weeks of abnormal signals.

A safer mental model is that the thermostat is a control device, not an accessory. It participates in a sequence of operations that includes safety limits, timed delays, and coordinated fan and compressor behavior. Changing how power reaches that device, or how signals leave it, alters the sequence. When the change is correct and matched to the equipment, the system runs normally. When it is improvised, the equipment may still run, but outside its designed conditions.

The practical takeaway

Most smart thermostat installations are straightforward when the existing wiring provides what the new unit needs and the homeowner follows the model-specific instructions. The unsafe DIY fixes cluster around power supply problems: borrowed common wires, jumpered terminals, mixed transformers, and low-voltage thermostats applied to line-voltage systems. These are not maintenance tasks. They are electrical modifications to equipment that may contain mains voltage and safety interlocks. If the wiring is unclear, if the terminals do not match, or if the system behaves oddly after installation, stop and have the circuit evaluated by a qualified technician. A thermostat that costs less than a service call is not worth risking the equipment behind the wall.
