Where a Water Dispenser's Energy Actually Goes

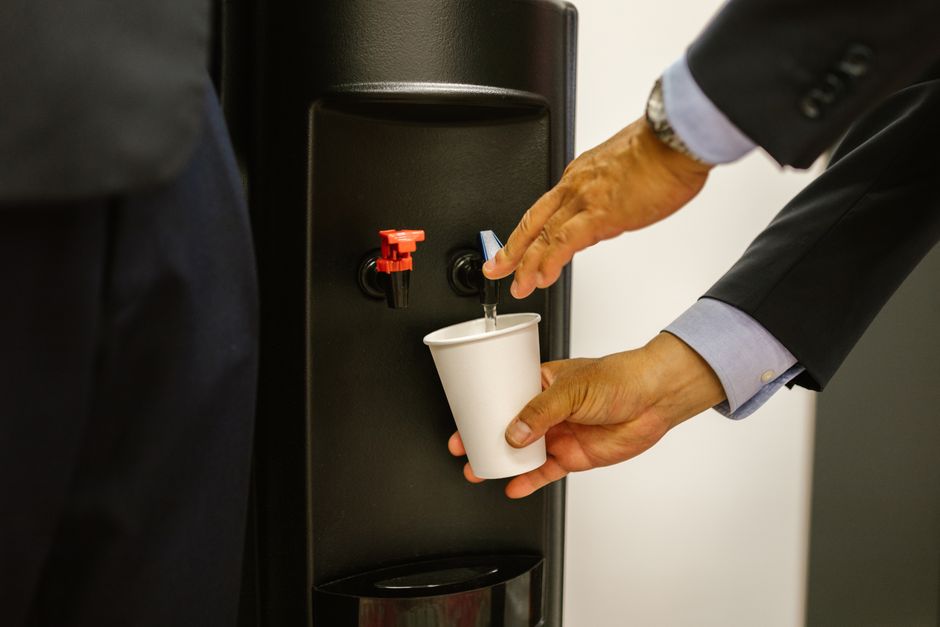

Standing at a water dispenser, filling a glass, it is easy to assume the machine is essentially a small refrigerator that also happens to pour. That assumption explains a lot of surprises: the warm cabinet sides, the faint hum that starts and stops on its own, the electricity that shows up on a bill even in months when nobody seems to be using much hot water. The useful question is not simply whether a dispenser uses a lot of energy, but which parts consume it, when they consume it, and why some designs spend far more idle energy than others.

The short answer is that energy in a typical dispenser goes to a few distinct jobs: removing heat from the cold tank, adding heat to the hot tank, keeping both tanks at setpoint when nobody is drawing water, pumping or valving water on demand, and running small electronics and indicator lights. In most household units, the two tanks dominate the total, and standby losses — energy spent holding temperature between uses — often matter more than the energy used to cool or heat the water you actually drink. That is the key insight: a dispenser is less like a light you switch on and more like two small thermostatically controlled tanks idling all day.

Two separate systems sharing one cabinet

A bottle-fed or point-of-use dispenser usually contains a cold side and a hot side that operate independently. The cold side is a small vapor-compression refrigeration circuit: a compressor, condenser, capillary tube or expansion device, and an evaporator coil wrapped around or immersed in the cold water tank. The compressor does not create cold; it moves heat out of the tank water and rejects it into the room through the condenser, which is why the back or sides of the cabinet can feel warm. The hot side is usually simpler: a resistance heating element inside an insulated hot tank, controlled by a thermostat, with a safety cutout. Resistive heating converts electricity to heat at essentially full efficiency, but that also means it is an inherently power-hungry way to raise water temperature compared with a heat pump.

Because the two sides are separate, the energy story depends heavily on which tank is being held, how well each is insulated, and how often the compressor or heater cycles back on. A dispenser that only cools water will use far less electricity than one that also keeps hot water at temperature around the clock.

Where the standby energy goes

Standby, or maintenance, energy is the electricity consumed to counteract heat leaking into the cold tank and heat leaking out of the hot tank. No tank insulation is perfect. In the cold tank, heat flows in from the warmer room, so the compressor must periodically restart to pump it back out. In the hot tank, heat flows out through the walls and through connected metal fittings, so the element must reheat the water. The rate of that leakage depends on insulation quality, tank size, cabinet design, and the temperature difference between the tank and the room.

This explains a common observation: a dispenser in a hot garage or sunny kitchen cycles more often than the same model in a cool basement. A larger temperature difference means faster heat gain or loss, which means more compressor runtime or more heater runtime. Likewise, hot-water setpoints that are unnecessarily high increase standby loss because a hotter tank loses heat to the room faster than a lukewarm one does.

Why the hot side often costs more than expected

Resistance heating is straightforward: the element draws its rated power whenever it is energized. Even a modest hot tank can pull several hundred watts while reheating, and if the dispenser keeps hot water ready at all times, those reheating events recur throughout the day. The compressor, by contrast, may draw a comparable or somewhat higher wattage while running, but it typically runs intermittently and only on the cold side. Which side dominates depends on setpoints, insulation, ambient temperature, and how much water is drawn — but households that use very little hot water frequently pay the most per cup, because they are heating and re-heating a tank they rarely empty.

Draw events versus idle time

When you actually dispense water, the immediate energy cost is small compared with the holding cost. A dispensing valve or pump consumes a tiny fraction of what the compressor or heater uses, and the act of pouring cold water simply replaces chilled water with room-temperature water that must later be cooled — a delayed cost, not an instant one. Similarly, drawing hot water replaces hot water with cold supply water, forcing the element to reheat the tank. The energy associated with a single glass is therefore spread across the hours after you fill it, not concentrated at the moment of dispensing.

This has a practical consequence: reducing standby loss is usually more effective than micromanaging individual pours. A dispenser used twice a day still pays for holding temperature twenty-four hours a day unless it has a switch, timer, or eco mode that de-energizes one or both tanks.

Design choices that change the math

• Tank size: Larger tanks hold more thermal mass, so they recover more slowly and can lose more heat through a larger surface area, though they also serve more draws before cycling.
• Insulation: Better foam or vacuum insulation slows heat transfer and lengthens the interval between compressor or heater cycles.
• Setpoints: Colder cold water and hotter hot water both increase the temperature difference that drives standby loss.
• Hot-water availability: Some models let you switch the hot tank off entirely; others keep it ready continuously.
• Point-of-use versus bottled: Point-of-use units that chill incoming supply water must remove heat from water that starts near room temperature, whereas bottled units receive water that may already be cooler.
• Controls and displays: Indicator lights, digital displays, and connectivity modules add a small but continuous load.

None of these factors makes one design universally better. A large, well-insulated tank with a low hot setpoint can use less energy than a small, poorly insulated one, even though the larger unit sounds more substantial.

What you can reasonably check

Most user-level investigation is observational and non-invasive. Feel the cabinet: warm condenser surfaces during cooling cycles are normal, but excessive heat or a compressor that never shuts off can indicate a problem. Listen for whether the compressor and heater cycle periodically rather than running continuously. Check whether the hot tank has an on/off switch or an energy-saving mode, and whether the manual specifies a recommended setpoint or night mode. Keep the condenser area and any vents free of dust and obstruction, since restricted airflow around the condenser raises compressor load and runtime.

Scale and mineral buildup also matter. In hard-water areas, scale on heating elements and tank surfaces acts as an insulating layer, slowing heat transfer and forcing longer heating cycles. Descaling is usually a manufacturer-specified procedure, and the correct method and frequency vary by model, so consult the manual before using any cleaner. Never combine cleaning chemicals, and avoid bleach with acids or ammonia.

Internal refrigeration and heating components sit behind panels and involve mains voltage, sealed refrigerant, or high-temperature elements. Compressor replacement, refrigerant service, element or thermostat replacement, and any work inside the cabinet should be handled by a qualified technician. Unplugging the unit before cleaning accessible exterior surfaces is sensible; unplugging does not make internal repair safe.

Normal behavior versus warning signs

Intermittent humming, warmth near the condenser, and occasional reheating are normal. Warning signs include burning smells, sparking, scorched plugs or cords, water reaching electrical parts, repeated breaker trips, or a compressor or heater that runs constantly without reaching setpoint. Those situations call for discontinuing use and seeking professional service rather than continued experimentation.

Energy use in a water dispenser is best understood as two thermostat-controlled thermal systems idling in the same box. The cold side pays to pump heat out through a compressor; the hot side pays to replace heat that leaks away from a resistance-heated tank. Draws matter, but holding temperature between draws usually matters more. The most meaningful levers are setpoint choices, insulation quality, ambient temperature, and whether the hot tank needs to stay hot at all — not the act of filling a glass.
