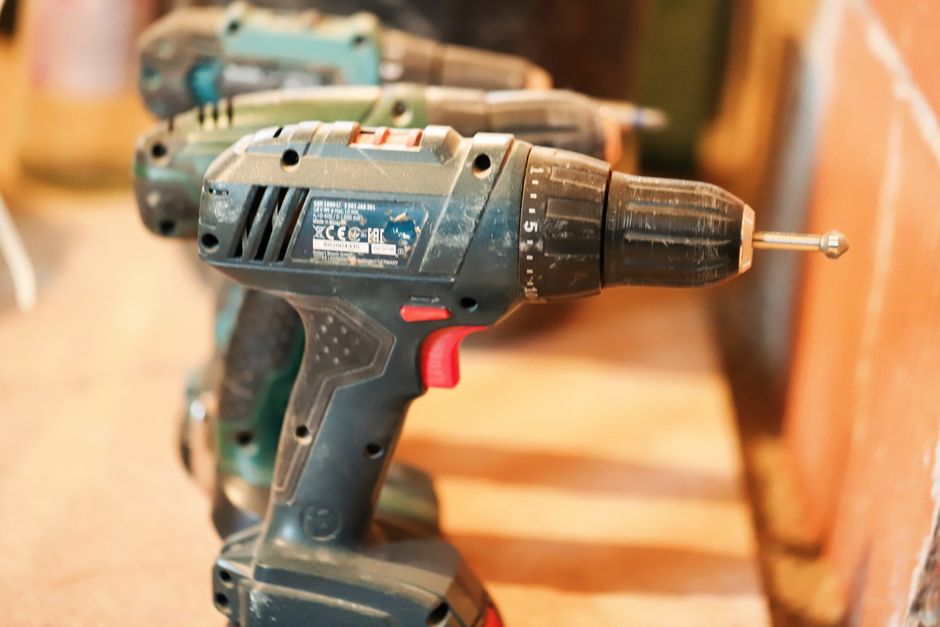

What Actually Happens Inside a Power Drill When You Pull the Trigger

A cordless drill is one of the few household tools whose entire personality changes in the fraction of a second between resting on a shelf and biting into a piece of wood. The trigger click, the brief whir, the sudden torque that tries to twist your wrist — all of it comes from a small chain of electrical and mechanical events that most owners never think about until something stops working. Understanding that chain explains a lot of ordinary behavior that otherwise looks like a fault: why the drill slows under load, why it smells faintly warm after heavy use, why the chuck sometimes slips, and why a battery that worked yesterday may sag today.

The short answer is that a modern cordless drill converts stored battery energy into rotary mechanical work through a switching circuit, a speed controller, a DC motor, a gear reduction, a clutch, and a chuck. Every stage has a job, and every stage has a characteristic failure mode. The interesting part is how those stages interact — because a symptom at the bit often originates several stages back.

The trigger is not just a switch

On a variable-speed drill, the trigger assembly is usually a combined switch and electronic speed controller. Squeezing it does two things: it closes the main power path, and it moves a small wiper or Hall-effect sensor that tells a control circuit how far the trigger is depressed. That circuit then pulses power to the motor very rapidly — a technique called pulse-width modulation — so that a light squeeze delivers short bursts of full battery voltage and a full squeeze delivers nearly continuous power.

This is why a drill can creep at very low RPM without stalling. If the trigger simply acted as a rheostat in the motor circuit, the motor would receive a reduced voltage at low speed and would produce very little torque, often stalling before the bit turned. Pulsing full voltage preserves torque at low average speed, which is why you can start a hole slowly and still feel the bit bite.

It also explains a common complaint: a drill that used to have fine trigger control may feel jumpy or may not start at all at low speed. The trigger's internal contacts or sensor can wear, and dust from drilling can enter the housing. On most models this is a replaceable module, but it sits in the low-voltage control side of the tool and is generally a job for someone comfortable with small electrical assemblies — not a live-circuit experiment.

Motor, magnets, and the load you feel

The motor in most cordless drills is a permanent-magnet DC motor, often described as brushed or brushless. In a brushed motor, spring-loaded carbon brushes press against a segmented commutator on the spinning armature. The commutator reverses the current direction in the armature coils at exactly the right moment to keep the magnetic fields pushing the rotor around. In a brushless motor, an electronic controller does the same timing job using rotor position information, and the brushes disappear.

Both designs produce torque by the same fundamental principle: current flowing through a conductor in a magnetic field experiences a force. More current means more force, which means more torque. This is the key to almost everything you feel at the handle.

• No load: the motor spins fast and draws relatively little current, because it only has to overcome friction and windage.
• Light load: the motor slows slightly, and current rises modestly to meet the demand.
• Heavy load or a binding bit: the motor slows a lot, current rises sharply, and the tool produces much more heat. If the load is severe enough, the motor may stall and current can spike to many times its normal running value.

That current spike is why a drill that is pushed too hard gets hot, why the battery drains faster under load, and why an undersized battery or a worn battery pack can cause the tool to cut out. Many modern packs include a protection circuit that disconnects the cells if current or temperature exceeds a safe limit. A drill that suddenly stops and then works again after a short rest is often reporting a protection event, not a broken motor.

Gears turn fast rotation into usable torque

A motor running at high RPM produces limited torque. Gears trade speed for torque. In a typical drill, a planetary gear set — a central sun gear, several planet gears, and an outer ring gear — reduces motor speed by a factor printed on the collar or selected by a two-speed switch. In low gear, the reduction is greater, so the chuck turns slowly but with much more twisting force. In high gear, the reduction is smaller, so the drill spins fast for small holes and driving screws.

This is why drilling a large hole in hardwood in high gear feels futile: the motor is being asked to deliver torque it cannot produce at that speed, so it bogs down. Switching to low gear lets the same motor run nearer its efficient range while the gears multiply the force at the bit.

The gearbox also explains some sounds. A faint whine that changes pitch with speed is normal gear mesh noise. A grinding or clattering that appears only in one gear range may indicate worn or damaged gears, and continuing to run the tool in that range can turn a small problem into a gearbox replacement.

The clutch and chuck are where the tool meets the work

Between the gearbox and the chuck sits the torque clutch on most drills. It is a set of spring-loaded balls or pins that can slip when resistance exceeds a selected threshold. The numbered collar adjusts that threshold. When driving screws, the clutch slips at a chosen torque so the screw seats without stripping; when drilling, the collar is normally set to the drill position, which locks the clutch out.

The chuck itself grips the bit with three jaws. Keyless chucks use a threaded mechanism turned by hand; the gripping force depends on how firmly the chuck is tightened and on the condition of the jaws. A bit that spins or wobbles usually points to a loose chuck, a worn jaw, or a bit with a damaged shank — not a motor problem. Tighten the chuck firmly, and if a bit still slips, inspect the shank and try another bit before assuming the tool is failing.

Why power fades and batteries sag

Battery voltage is not constant. Under a heavy load, internal resistance causes voltage to drop, and the motor receives less than its nominal voltage. A healthy pack recovers quickly when the load eases; a worn or cold pack may not. This is why a drill can feel strong on a fresh charge and weak on a partly discharged one, and why cold weather reduces performance until the pack warms up.

It also explains a common misconception: a drill that lacks power is not necessarily a weak drill. The bottleneck may be the battery's age or state of charge, the gear range, the bit's sharpness, or how hard the user is pushing. Pushing harder increases friction and heat without increasing cutting speed much, and it can overload the motor. Letting the bit cut at its own pace usually drills faster and keeps the tool cooler.

When warmth, smell, or shutdown is normal — and when it is not

All power tools get warm in use. Heat is an unavoidable byproduct of current flowing through motor windings and of friction in bearings and gears. A drill that is warm to the touch after several minutes of continuous drilling is behaving normally. A hot handle, a sharp electrical smell, smoke, sparking at the vents, or a tool that will not restart after cooling is not normal and is a reason to stop using it.

Burning smells often come from overheated insulation, a failing switch, or a motor drawing excessive current due to a mechanical bind or a shorted winding. These are internal electrical problems, and they are not suitable for casual repair. Disconnect the battery, stop using the tool, and have it evaluated by a qualified service technician. Never open a battery pack or probe its cells; lithium packs store significant energy and can vent or ignite if mishandled.

What maintenance actually accomplishes

Power tools are simpler than most household appliances, and their maintenance needs are modest. Keeping the vents clear of dust helps the internal fan move air across the motor, which directly affects how long the tool can run before heat becomes limiting. Keeping bits sharp reduces the load on the motor and the gearbox. Cleaning and lightly lubricating the chuck mechanism according to the manufacturer's instructions helps the jaws grip evenly. Storing batteries at moderate temperatures and charging them as the manufacturer directs supports both capacity and service life.

None of this guarantees a particular lifespan. Tool life depends on design, component quality, how hard the tool is worked, battery condition, and chance. But understanding the chain — trigger, controller, motor, gearbox, clutch, chuck, battery — makes it easier to tell whether a problem is user-level, model-specific, or a genuine internal fault that deserves professional attention.

The practical takeaway is that a drill's behavior is a conversation between electrical current and mechanical resistance. When you feel it slow, heat up, or lose torque, the tool is not being stubborn; it is reporting where along that chain the load has become too great. Reading that report accurately is what separates ordinary operation from a real fault.
