How to Fix a Refrigerator That's Not Cooling But Freezer Works: Step-by-Step DIY Troubleshooting Guide

Introduction

If your refrigerator stops cooling but the freezer remains icy cold, you are not alone. This is one of the most common appliance complaints, often caused by a faulty evaporator fan motor, blocked air vents, or a defective defrost timer. Before calling a repair technician, you can diagnose and fix many issues yourself. This guide provides a systematic approach to troubleshooting and repair, saving you time and money. We also recommend keeping a digital multimeter on hand for electrical tests and a set of electronics screwdriver set for accessing components.

Understanding the Problem

Refrigerators and freezers share a single cooling system. The compressor compresses refrigerant, which then flows through evaporator coils usually located in the freezer section. A fan (evaporator fan) blows cold air from the freezer into the refrigerator compartment via vents and ducts. If the fan fails, the vents get blocked by ice, or the defrost system malfunctions, the fridge will warm up while the freezer remains cold.

Step 1: Safety First

Unplug the refrigerator from the wall outlet. Wait at least 5 minutes before starting any inspection to allow internal capacitors to discharge. Wear safety gloves and avoid touching any exposed wiring.

Step 2: Check for Air Blockages

Open the refrigerator door and look for the air vents located on the back wall or ceiling. If they are covered by food containers or ice buildup, clear them. Remove any items that might restrict airflow. If you see frost or ice blocking the vents, proceed to Step 3.

Step 3: Inspect the Evaporator Fan

Locate the evaporator fan inside the freezer compartment behind the back panel. Remove the panel screws (using your electronics screwdriver set). Check if the fan spins freely by hand. If not, the motor bearings may be seized. Use a multimeter to test continuity across the fan motor terminals; if open, replace the fan motor. If the fan is frozen in ice, a defrost issue is likely.

Step 4: Examine the Defrost System

If the evaporator coils are covered in thick ice, the defrost heater, thermostat, or timer may be faulty. The defrost heater is a metal rod attached to the coils. Check for continuity using your multimeter. If it fails, replace it. The defrost thermostat (a small disc near the coils) should close (conduct) when below 25°F (-4°C) and open when above 45°F (7°C). If it's stuck open, the heater never turns on. The defrost timer (found behind the front kickplate or in the control panel) may also need testing. Some modern refrigerators use electronic control boards instead of timers.

Step 5: Test the Start Relay and Compressor

If the compressor doesn't run, the fridge will not cool. Listen for a humming sound. If you hear a click but no hum, the start relay may be defective. Unplug the fridge, remove the start relay from the compressor (usually a small black box), and shake it. If it rattles, it's broken. Test continuity with a multimeter. Replace as needed. Also check the compressor windings for continuity between start and run terminals—if open, the compressor is dead and requires professional service.

Step 6: Clean the Condenser Coils

Dirty condenser coils (usually under or behind the fridge) can cause poor cooling efficiency. Use a vacuum with a brush attachment or a condenser coil cleaning brush. This simple step often restores cooling performance. For models with condenser fan motors, ensure the fan spins freely.

Step 7: Check the Door Seals and Thermostat

Inspect the rubber gaskets around both doors for cracks or gaps. A leaky seal lets cold air escape, making the compressor run longer but still warm the fridge. Clean gaskets with mild soap, or replace if damaged. Also, ensure the refrigerator thermostat (located in the fresh food section) is set to 37°F (3°C) and not accidentally turned off.

Step 8: Advanced Diagnostics with a Control Board

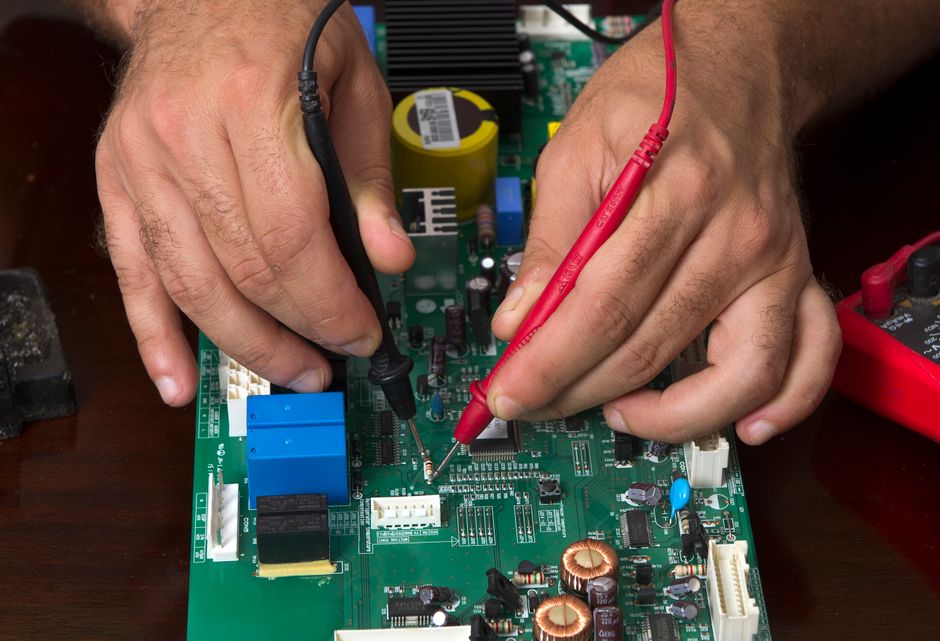

If all components check out, the main electronic control board may have failed. Look for burnt spots or swollen capacitors. Use your multimeter to check voltage at the board's input and output. Replacement is possible but requires careful wiring labeling. Consider hiring a technician if unsure.

Practical Tips for Prevention

• Keep the refrigerator away from heat sources like ovens or direct sunlight.
• Leave space behind the unit for airflow.
• Clean condenser coils every 6 months.
• Defrost manually if your model isn't frost-free.
• Use a refrigerator deodorizer to maintain fresh air and reduce ice buildup caused by moisture-laden odors.

When to Call a Professional

If you've replaced the evaporator fan, defrost heater, and start relay but the fridge still won't cool, the sealed system (compressor, capillary tube, or refrigerant leak) is likely damaged. This requires specialized tools and EPA certification. Expect costs between $200–$600 for sealed system repair, often justifying a new unit.

Conclusion

A refrigerator that fails to cool but has a working freezer is typically a fixable problem. By following these eight steps, you can diagnose and repair common failures like bad evaporator fans, defrost system faults, or blocked vents. Always prioritize safety and use appropriate tools like a digital multimeter and electronics screwdriver set. With patience, you can extend your appliance's life and avoid costly service calls.
