How Inverter Compressors Move Heat at Part Load: What Variable-Speed Operation Actually Changes

Stand next to a modern refrigerator or ductless air conditioner and you may notice something that older equipment rarely did: the compressor almost never seems to switch off completely. Instead of the familiar on-off rhythm punctuated by a distinct click, the machine hums along at a low, steady level for long stretches. That behavior is the visible signature of inverter-driven variable-speed operation, and the most useful way to understand it is not through marketing language about "smart technology" but through the physics of how heat moves out of a cabinet or a room.

The short answer is that a variable-speed compressor does not change where heat goes or how the refrigeration cycle works. Heat still enters the evaporator, gets absorbed by boiling refrigerant, is carried to the condenser, and is released into the surrounding air. What changes is how hard and how long the compressor runs while performing that transfer. An inverter adjusts the electrical frequency supplied to the compressor motor, which adjusts its rotational speed, which adjusts refrigerant mass flow. Lower speed means less heat moved per minute; higher speed means more. Matching that output to the actual heat load is the entire point.

Heat Always Moves From Warm to Cold

Refrigeration is often described as "making cold," but no appliance creates coldness. A refrigerator, air conditioner, or heat pump moves thermal energy from a place where it is unwanted to a place where it can be rejected. In a refrigerator, that means pulling heat out of the food compartment and dumping it into the kitchen. In a window air conditioner, it means pulling heat out of the room air and dumping it into the outdoors.

The cycle depends on a refrigerant that boils at very low temperature on the cold side and condenses at higher temperature on the hot side. The compressor's job is to raise the pressure of the refrigerant vapor so it will condense and give up heat in the condenser coil. Without that pressure increase, the refrigerant would simply circulate without creating a useful temperature difference.

A fixed-speed compressor has essentially two states: running at full output or stopped. It must be sized to handle the hottest day or the warmest refrigerator load it will ever see, so most of the time it is oversized relative to the current demand. It runs, overshoots the target temperature, shuts off, and waits for the temperature to drift back. That cycling is normal, but it produces temperature swings and repeated high-current starts.

What an Inverter Actually Controls

An inverter is a power electronics stage that converts the incoming AC supply into a controllable output. In a variable-speed compressor, it varies the frequency and voltage delivered to the motor, which changes the motor's synchronous speed. A compressor rated to run at line frequency has one practical speed; an inverter-driven compressor can run across a range, from a low minimum to a maximum that is typically higher than its fixed-speed equivalent.

Refrigerant mass flow scales roughly with compressor speed. When the compressor slows down:

• Less refrigerant circulates per minute, so less heat is absorbed at the evaporator.
• The pressure difference the compressor must maintain tends to shrink, which reduces the work per unit of refrigerant.
• The condenser has more time to reject the heat it receives, which can lower condensing temperature and improve heat transfer.

When the compressor speeds up, the opposite happens: more mass flow, more heat moved per minute, but generally more electrical input and more compressor noise.

Why the Compressor Rarely Stops

Because the inverter can reduce output far below the fixed-speed minimum, the system can meet a small heat load by running slowly rather than stopping and restarting. The compressor may run for hours at low speed, then ramp up when a door is opened, when the room fills with people, or when outdoor temperature climbs. The result is a much steadier temperature rather than a sawtooth pattern.

This is also why an inverter appliance may seem to run more often than an older one. It is not necessarily working harder in a total-energy sense; it is working more continuously at lower intensity. Runtime alone is a poor indicator of energy use.

Part-Load Efficiency and the Real Energy Story

Compressors are most efficient near their design point, and part-load operation with a variable-speed drive can reduce losses associated with frequent starts, motor inrush current, and rapid pressure equalization. Reducing the number of start-stop cycles also reduces wear on motor windings, relays, and bearings, though it does not eliminate wear entirely; a compressor running continuously at low speed still accumulates operating hours.

Where the efficiency claim can become misleading is in assuming that an inverter label guarantees lower electricity bills in every home. Actual consumption depends on:

• The temperature difference the system must maintain between the cold side and the hot side.
• Insulation quality, door seals, and how often the appliance is opened.
• Ambient conditions, such as a hot kitchen or a sun-exposed outdoor unit.
• How the control algorithm chooses between low-speed and high-speed operation.
• Whether the appliance is correctly sized for the space.

A more efficient compressor in an oversized or poorly sealed installation may still use substantial energy. Efficiency is a ratio; consumption is that ratio multiplied by the work the appliance is asked to do.

Where the Heat Goes, and Why That Matters

If you want to judge whether a variable-speed appliance is behaving normally, follow the heat. In a refrigerator, warmth at the sides or back is the condenser rejecting heat from the cabinet. If that surface is consistently hot rather than merely warm, the system is either working against a large temperature difference or struggling to reject heat because of dust, restricted airflow, or a failing condenser fan.

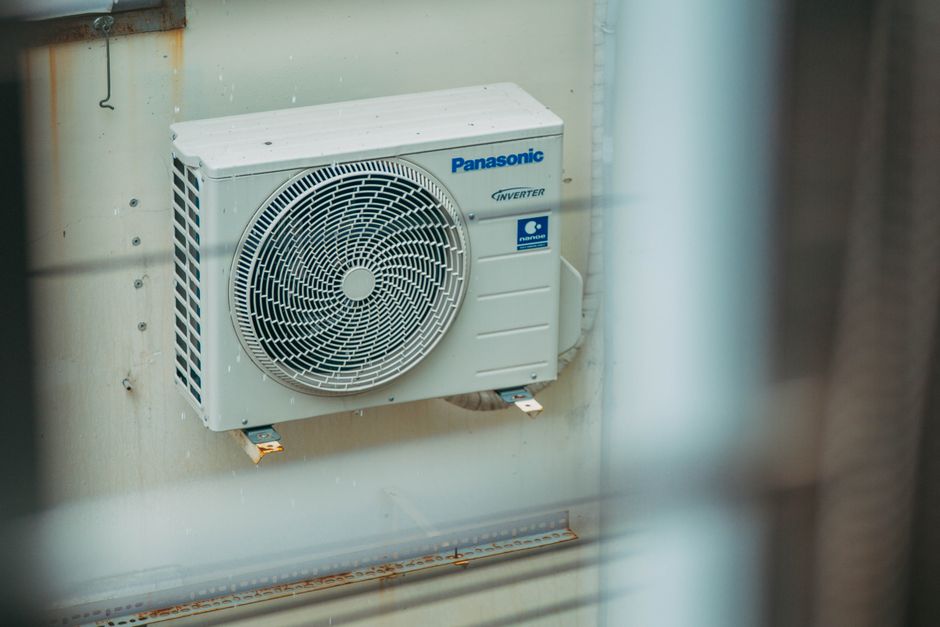

In an air conditioner, the outdoor unit should be releasing heat steadily. A unit that runs at high speed constantly without bringing the room down to the setpoint may be undersized, low on refrigerant, or fighting an airflow restriction across the indoor coil. These are different problems, and a variable-speed compressor cannot compensate for a blocked filter or a sealed refrigerant leak.

Normal Behavior Versus a Fault

Several behaviors that alarm owners are actually expected with inverter equipment:

• Long runtimes at low speed are normal and often indicate the system is matching a small load.
• Ramping up and down as doors open, sunlight changes, or cooking adds heat is normal control response.
• Different sound levels at different speeds are normal; a compressor running slowly is quieter than one at full output.
• Warm condenser surfaces during heavy use are normal within reasonable limits.

Signs that deserve attention include repeated tripping of a breaker, a compressor that will not start at all, unusual metallic or grinding noises, refrigerant oil residue near fittings, ice formation on an evaporator that never clears, and a burning smell. Any of these warrants stopping use and seeking qualified service.

Maintenance That Actually Affects Heat Transfer

Because inverter systems modulate to meet load, poor heat transfer does not always produce an obvious failure. The system may simply run at higher speed for longer, quietly using more energy and wearing components faster. That makes a few accessible maintenance tasks meaningful:

• Clean or replace filters according to the manufacturer's guidance. A loaded filter increases airflow resistance, which reduces the heat that can be absorbed or rejected at the coil.
• Keep condenser coils and surrounding clearances free of dust, pet hair, and obstructions. Restricted airflow raises condensing temperature and forces the compressor toward its upper speed range.
• Check door gaskets and seals on refrigerators. A leaking seal adds a continuous sensible and latent load that the compressor must remove.
• Keep outdoor units shaded from direct sun where the installation allows, without blocking airflow.

Users can typically handle filters, accessible coils, and visible seals. Refrigerant circuits, inverter boards, capacitors, and compressor windings are not user-serviceable. A digital multimeter may be useful for simple checks on accessible low-voltage control circuits, but it does not make opening an energized appliance safe, and sealed refrigerant systems should be left to qualified technicians.

In some cases, an owner may also want to monitor the appliance's environment rather than its internals, since ambient heat and humidity strongly influence how hard a compressor must work. A smart home hub with a thermometer and hygrometer can help track room conditions, though no monitoring device changes the underlying heat load.

What the Inverter Does Not Change

Variable-speed operation improves how flexibly a system matches its load and can reduce cycling losses, but it does not alter the basic direction of heat flow, does not eliminate the need for adequate insulation and airflow, and does not override the physical limits of the refrigeration cycle. A compressor running at low speed still has to move every joule of heat that enters the cabinet or room.

The practical takeaway is straightforward. When an inverter appliance seems to run constantly, the first question should be what heat load it is fighting, not whether the compressor is broken. Long, quiet operation at low speed is the design working as intended. Hot condenser surfaces, high-speed operation that never catches up, or unusual noises and smells are the clues that something in the heat-transfer path — airflow, refrigerant charge, or mechanical components — needs professional attention.
