How HVAC Compressor Sensors and Controls Decide When to Run and When to Stop

Why the Compressor Seems to Have a Mind of Its Own

A central air conditioner or heat pump can sit silent for long stretches, then start with a soft thunk, run for a while, pause, and start again. On a mild afternoon the outdoor unit may cycle on and off repeatedly. On a hot one it may run almost continuously. Some homeowners interpret the quiet stretches as a fault and the long runs as strain. In reality, most of that behavior reflects a compressor being switched by a small network of sensors, a control board, and protective safety devices that are constantly deciding whether conditions are safe and whether the thermostat still wants conditioning.

The compressor is not simply plugged into the thermostat. The thermostat makes a request, and the equipment's own controls decide whether that request can be granted. Understanding that two-layer arrangement explains most of the start-stop behavior people notice.

Two Very Different Jobs: Calling for Cooling and Permitting It

The thermostat is the demand layer. It measures indoor air temperature at its own location, compares that reading to the setpoint, and closes a low-voltage circuit when conditioning is needed. That signal travels through the thermostat cable to the air handler or furnace control board and on to the outdoor unit.

The equipment controls are the permission layer. Inside the outdoor unit, a control board reads sensors, watches timers, and checks whether protective switches are closed. Only when demand and permission line up does the contactor close and send line voltage to the compressor and condenser fan motor.

This distinction matters because a compressor that will not start may not be a compressor problem at all. It may be a control refusing to start it, and the refusal is usually deliberate.

The Sensors and Switches That Guard a Compressor

Compressor protection is largely mechanical and electrical rather than software-driven. The exact set of devices varies by manufacturer, age, and whether the equipment is a single-stage, two-stage, or variable-speed system, but several categories are common.

Temperature and pressure sensing on the refrigerant side

Refrigerant pressure corresponds to refrigerant temperature, so pressure switches are a practical way to infer what is happening in the sealed system. A low-pressure switch opens when suction pressure drops too low, which can occur with a refrigerant charge problem, a restricted metering device, or a frosted evaporator coil. A high-pressure switch opens when discharge pressure climbs too high, which can happen with a dirty condenser coil, a failed condenser fan, or extremely high outdoor temperatures combined with recirculated hot air. Both switches interrupt the low-voltage control circuit, so their effect is to cancel permission to run until pressure returns to a normal range.

Internal overload protectors

Many compressors contain a thermal overload device that responds to winding temperature and current. If the motor windings get too hot, the overload opens and the compressor stops, then resets after cooling. A compressor that runs briefly, stops, and restarts minutes later may be tripping and resetting this protector. That pattern usually points to an underlying cause such as low voltage, high head pressure, or a failing start component rather than the protector itself.

Current and voltage monitoring

Some control boards monitor compressor current with a current transformer or similar sensing method. If the measured current is far above or below what the board expects, the board may lock the compressor out and display a fault. This is a form of protection that also supports diagnosis, because current draw is a useful indicator of mechanical and electrical condition.

Condensate and float switches

On the indoor side, a condensate overflow float switch is common. When the drain pan fills because of a clogged drain line, the float rises and opens the control circuit, shutting the system down before water damages ceilings or floors. The compressor stops not because of anything wrong with the compressor but because an indoor safety device removed permission.

What the Control Board Actually Does With Those Signals

The board's logic is generally straightforward. It waits for a thermostat call, then checks that safety inputs are satisfied. If they are, it energizes the contactor and often the condenser fan. Many boards also add short-cycle protection: after a compressor stops, they impose a delay of several minutes before allowing a restart. That delay lets refrigerant pressures equalize, which reduces the starting torque needed and protects the compressor motor.

Short-cycle protection explains a behavior that often alarms homeowners: the thermostat says the room is warm, yet the outdoor unit stays off for a few minutes. That pause is typically a timer doing its job, not a failure.

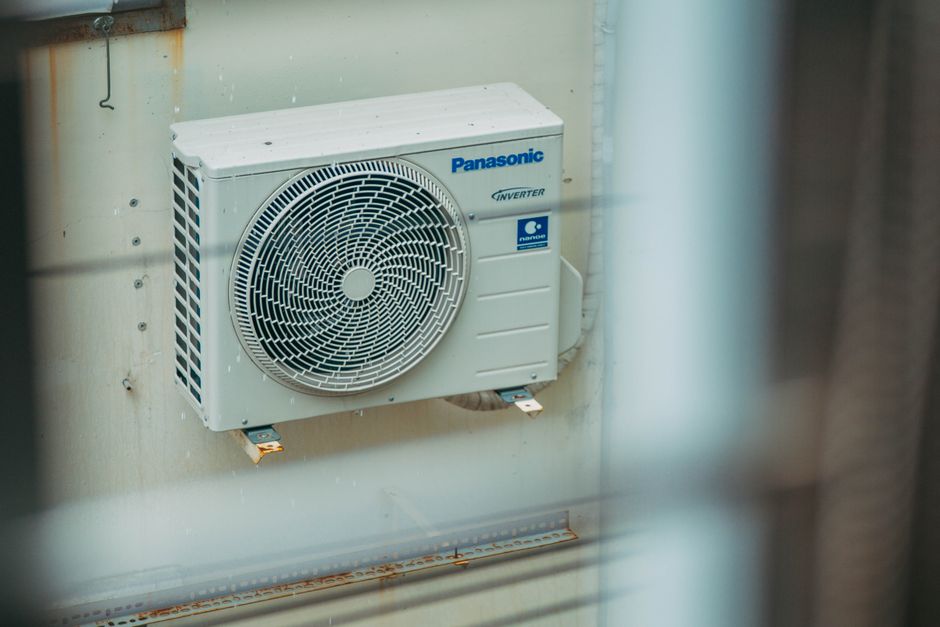

Inverter and Variable-Speed Compressors Change the Picture

Traditional single-stage compressors run at one speed and cycle on and off. Inverter-driven compressors use a variable-frequency drive to change motor speed, usually by rectifying incoming AC power to DC and then synthesizing a controlled AC waveform at a chosen frequency. Instead of cycling, the compressor can slow down and run longer, matching capacity to load more closely.

On these systems, the control board reads suction and discharge pressure or temperature, outdoor and indoor temperatures, and sometimes communication data from the thermostat. It then selects a target speed. Because the compressor rarely stops and restarts, short-cycle delays matter less, and the familiar on-off rhythm disappears. Homeowners who move from an older single-stage system to an inverter system sometimes mistake the long, quiet run for a problem when it is actually the design working as intended.

When Cycling Is Normal and When It Signals Trouble

Some cycling is simply the compressor doing what the thermostat asks. As outdoor temperature falls and the cooling load shrinks, runtime shortens and pauses lengthen. Oversized equipment can also cycle frequently on mild days because it reaches the setpoint quickly. That is a design issue rather than a broken sensor.

Patterns worth investigating include:

• Very short runtimes followed by long off periods on a hot day when the house is not reaching the setpoint
• Repeated start attempts with an audible click but no compressor hum
• Tripping and resetting every few minutes, especially with a hot outdoor unit
• System shutdowns that coincide with a wet area near the indoor unit
• Error indications on the thermostat or control board that repeat after clearing

Each of these points toward different parts of the system. A repeated click with no start suggests an electrical or starting-component issue. Frequent tripping on a hot day suggests high head pressure from airflow or charge problems. A shutdown near the indoor unit suggests a condensate float switch.

Airflow, Heat, and Why the Sensors React the Way They Do

HVAC controls are largely watching for the consequences of heat transfer. The condenser coil rejects heat to outdoor air; when the coil is clogged with dust, cottonwood, or grass clippings, heat rejection becomes less effective, discharge pressure rises, and eventually a high-pressure switch or the internal overload stops the compressor. The same logic applies indoors. A loaded air filter reduces airflow across the evaporator coil, which lowers suction pressure and coil temperature and can eventually cause the low-pressure switch to open or the coil to ice over.

This is why filter and coil condition show up so often in compressor symptoms. The controls are not malfunctioning; they are responding to a real pressure or temperature excursion created upstream.

What a Homeowner Can Safely Check

User-level checks are limited to the accessible, low-risk side of the system:

• Confirm the thermostat is set to cool and the setpoint is below room temperature
• Replace or clean the air filter according to the manufacturer's guidance
• Verify the outdoor unit has clear airflow and that vegetation, debris, or a cover is not blocking the coil
• Check that the indoor drain pan is not overflowing and the drain line is not obviously clogged
• Look for a tripped breaker or a service switch that has been turned off, and reset it once if it is safe to do so
• Note whether the indoor blower runs while the outdoor unit is silent, since the two failures have different likely causes

Beyond these steps, the electrical and refrigerant sides require professional service. Line-voltage wiring, contactors, capacitors, inverter modules, and sealed refrigerant circuits carry serious shock or burn risk and, for refrigerant, legal and environmental handling requirements. A basic multimeter can be a reasonable tool for low-voltage diagnostic work on circuits a person already understands, but owning one does not make internal compressor or mains-voltage repair safe. Refrigerant leaks, suspected compressor failure, repeated breaker trips, and any burning smell or sparking call for a qualified technician, and the system should be left off until it is examined.

If the goal is simply to observe whether the equipment is responding to the thermostat as expected, a smart thermostat or a separate indoor temperature and humidity monitor can help a homeowner correlate setpoint changes with runtime without opening the unit. In the wider picture, though, the compressor's behavior is best read as a conversation between demand, permission, and physical conditions, and the most useful response is usually to check the simple things first.

The Practical Insight

A compressor runs only when the thermostat asks and every safety input agrees. Its sensors do not create cooling; they watch pressure, temperature, current, and condensate level and withdraw permission when something is outside normal bounds. Short runs, long pauses, and periodic stops are often legitimate control behavior, particularly with short-cycle timers or inverter modulation. When the pattern changes in a way that prevents comfort, the clues usually point toward airflow, refrigerant charge, electrical supply, or a safety device doing its job. Reading the system that way keeps diagnosis grounded and keeps the risky work in qualified hands.
