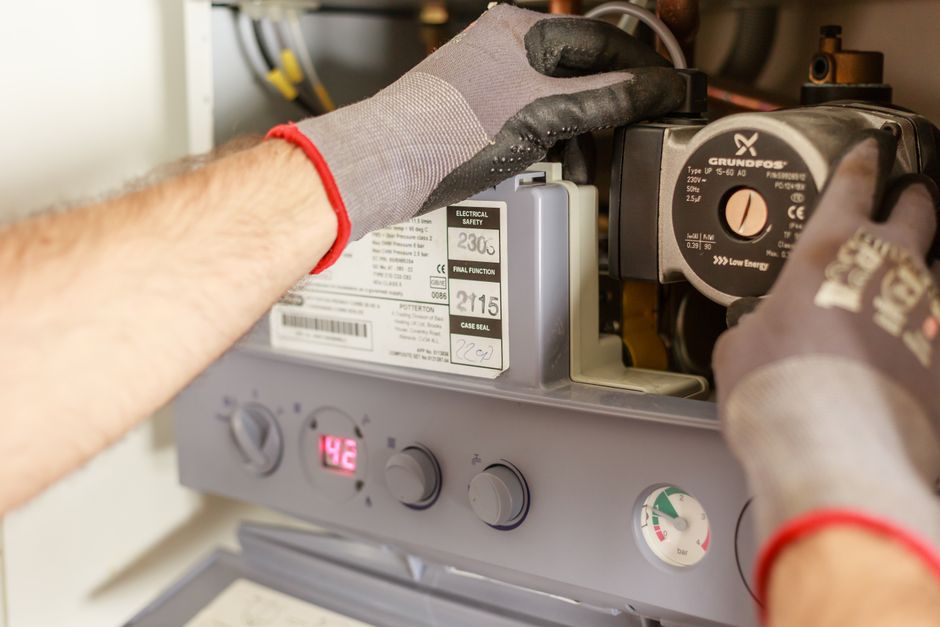

Most homeowners think about their boiler only when the radiators stay cold or the hot water runs out. But the more interesting engineering question is what happens when something goes wrong inside the unit itself. A boiler holds a controlled flame, circulating water, and combustion gases inside a confined metal vessel, often in a bedroom, basement, or closet. The reason that arrangement is as safe as it is has little to do with any single clever part and a great deal to do with a layered design philosophy called fail-safe logic. Understanding that logic explains why a boiler sometimes shuts down for seemingly no reason, why a reset button exists, and why some shutdowns are ordinary protective responses rather than signs of failure.

The core idea: safety by default, not by vigilance

A fail-safe system is designed so that the safe condition is the one the equipment falls into when a signal is lost, power disappears, or a component stops responding. In a boiler, that safe condition is simply no flame and no fuel. Every safety device is wired so that it must actively confirm that conditions are acceptable before the burner is allowed to run. If confirmation stops, the burner stops. Nothing has to detect a fault explicitly for the system to become safe; the absence of a positive signal is itself the trigger.

This is different from fail-secure design, where a lock stays locked or a damper stays closed when power fails. A boiler is fail-safe in the sense that it defaults to the quiet state. That distinction matters because it explains a common homeowner experience: a boiler that refuses to fire even though nothing appears visibly broken. In many cases the control is doing exactly what it was designed to do.

The flame-sensing chain

The most important safety question inside any gas-fired boiler is simple: is there actually a flame where fuel is being released? If gas flows without ignition, unburned fuel accumulates, and that is the scenario all combustion safety design exists to prevent. The solution is a flame-proving sequence that runs every single time the burner starts.

Pre-purge and ignition

Before any fuel valve opens, the control board typically runs a pre-purge period in which a fan pushes air through the combustion chamber and flue. This clears any residual combustible gas and establishes airflow. Only after that does the ignition source energize, and only after that does the main gas valve open. The order is deliberate: ignition first, fuel second, never the reverse.

Proving the flame

Once fuel is admitted, the control must confirm within a short window, often a few seconds, that a flame actually exists. Older atmospheric boilers frequently used a thermocouple or thermopile, a small device that generates a tiny voltage when heated by the pilot flame. That voltage holds the gas valve open. If the flame goes out, the voltage collapses and the valve closes. Newer boilers more often use flame rectification, in which the flame itself conducts a small current between an electrode and the burner body. The control interprets that current as proof of flame.

Either way, the logic is the same: no proven flame, no continued gas flow. If the control does not receive proof within the trial-for-ignition period, it closes the gas valve and typically enters a lockout state that requires a manual reset. That reset button is not a nuisance feature. It forces a human to acknowledge that ignition failed before another attempt is made.

Why pressure and temperature limits exist

Combustion is only one hazard. A sealed hydronic boiler also contains water under pressure and a heat exchanger exposed to flame. Two additional protective layers address the water side of the system.

High-limit temperature control

A temperature sensor or aquastat monitors the water leaving the boiler. If the water approaches an unsafe temperature, the control shuts off the burner. This is separate from the normal operating thermostat that cycles the boiler to maintain setpoint. The high limit is a safety backstop, and in many designs it is a manual-reset device so that a persistent overheating condition does not simply recycle endlessly.

Pressure relief valve

Water expands as it heats, and in a sealed system that expansion raises pressure. A pressure relief valve is a purely mechanical, spring-loaded device that opens at a preset pressure and discharges water, usually to a drain or nearby floor. It does not depend on electricity, a sensor, or the control board. If the control system fails and the burner keeps running, the relief valve is the last line of defense against overpressure. That is a genuinely fail-safe component: it operates on physical force alone.

Low-water and flow protection

Some boilers include low-water cutoffs or flow switches that prevent firing when there is insufficient water in the heat exchanger. Firing a dry or partially dry heat exchanger can cause rapid overheating and cracking. These devices vary widely by design, and not every residential boiler includes every type.

How the pieces interact

The safety systems are not independent gadgets bolted onto a boiler. They form an interlock chain. The control board will not open the gas valve unless airflow is established, ignition is energized, flame is proven, water temperature is acceptable, and any required flow or water-level condition is satisfied. Each condition acts as a permission. Remove any one permission and the burner stays off.

This is why a boiler shutdown can be triggered by something that seems unrelated to combustion, such as a circulation pump that has stopped moving water, a blocked flue, or a failing sensor. The symptom is the same, but the cause can sit anywhere along the chain.

Normal shutdowns versus real faults

Homeowners often interpret any burner lockout as a breakdown. In practice, short cycling, lockouts after a power interruption, and brief delays before ignition can all be normal protective behavior. Boilers also go through purge and post-purge phases that produce fan noise and pauses with no flame, which is expected.

What should not be treated as routine is repeated lockouts, the smell of gas, soot or yellow flame where the flame should be blue, water discharging from the relief valve, error codes that return after reset, or any burning odor near the unit. Those point to conditions the safety layer cannot fix on its own and require a qualified technician. Gas valves, combustion settings, flue integrity, and sealed-system repairs are not homeowner tasks.

What maintenance actually supports

Safety devices work only if they can sense what they are supposed to sense. A flame sensor coated with oxide may fail to prove a flame that is burning perfectly. A blocked intake or exhaust can disrupt the airflow the control expects. A relief valve that has wept mineral deposits may not reseat cleanly. A dirty heat exchanger can raise temperatures and trip the high limit.

Annual professional service exists for these reasons, not because boilers are fragile. The technician verifies combustion, cleans sensing elements, checks the relief valve, and confirms that the interlock chain responds correctly. Manufacturer guidance on service intervals and user-accessible maintenance varies, so the boiler manual and local regulations should always be the reference. What a homeowner can reasonably do is keep the area around the boiler clear, avoid blocking vents, watch for water or soot, and treat repeated lockouts as information rather than an inconvenience.

The practical takeaway

A boiler's reputation for safety rests on a simple principle: the equipment must earn the right to burn fuel, moment by moment, through a chain of confirmations. When any link in that chain is missing, the system reverts to the safe state by design. Understanding this reframes common boiler behavior. A refusal to fire is usually the safety architecture working, while the genuinely concerning signs are the ones the architecture is trying to prevent. Recognizing that difference helps homeowners respond appropriately, avoid unnecessary worry, and know clearly when a professional should take over.
