Do You Really Need a Water Pressure Gauge, Booster Pump, or Whole-House Regulator?

Few household complaints are as common as "the shower is weak." And few complaints attract as much well-meaning advice, most of it involving something you can buy. A water pressure gauge, a booster pump, a whole-house regulator, a fancy showerhead, a tankless heater adjustment: the list of possible fixes is long enough that most homeowners end up guessing, spending, and still not understanding what is actually happening inside their pipes.

The useful way to approach home water pressure is to separate measurement from correction. A single inexpensive gauge answers most of the diagnostic questions. Almost everything else depends on what that number, measured at the right place under the right conditions, actually reveals. Buying a booster pump before you know whether your incoming pressure is low, your plumbing is restrictive, or your fixture is simply scaled up is the household equivalent of replacing a car engine because the tires are flat.

What “Water Pressure” Actually Means in a House

Water pressure is force per unit area, usually expressed in pounds per square inch (psi). In a home, it exists because water in the municipal main or your private well is being pushed toward your fixtures. Municipal systems typically deliver somewhere in the range of roughly 40 to 80 psi at the meter, though this varies widely by utility, elevation, and neighborhood demand. Private wells rely on a pressure tank and a pump cycling between a low and high cut-in/cut-out setting, commonly somewhere in the 30-50 psi or 40-60 psi range depending on how the switch was set.

The key point is that the number at the street is only the starting point. Pressure falls as water moves through pipe, and every fixture in the house draws from the same source. When several fixtures run at once, each one gets a smaller share of the available flow, and pressure at each outlet drops. This is why the shower feels strong in the morning and weak when someone starts the dishwasher.

Pressure and flow are related but not identical. A pipe can have adequate static pressure with the taps closed and still deliver disappointing flow because of a narrow diameter, a long run, a partially closed valve, or a clogged aerator. A pressure gauge tells you pressure. It does not directly tell you flow, and it cannot tell you where along the plumbing the loss occurs.

The Tools That Genuinely Earn Their Place

A basic pressure gauge

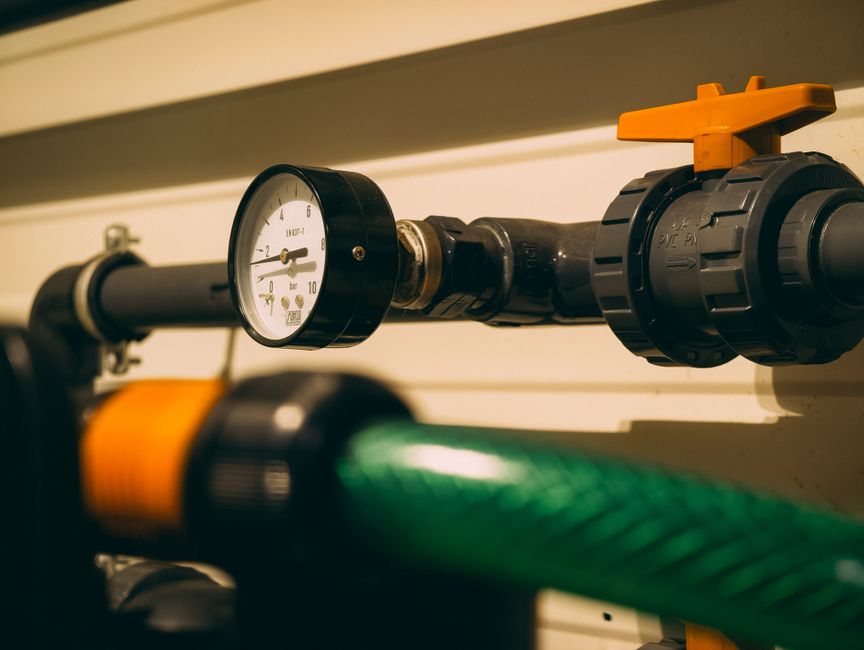

The single most useful instrument for home water pressure is a simple gauge that threads onto a hose bib or laundry sink faucet. It usually costs very little, requires no calibration, and gives you a number instead of an impression. Used correctly, it can distinguish low incoming pressure from internal restriction. If the reading at an outdoor spigot near the meter is low with no water running, the problem is upstream, in the supply. If the reading is normal at the spigot but drops sharply when you open a shower upstairs, the problem is internal piping, a valve, or a fixture restriction.

Your own observation, done systematically

Pressure behavior across the house is a diagnostic pattern, not a mystery. Note which fixtures are weak, whether the weakness is constant or only when other water is running, whether it started suddenly or gradually, and whether hot and cold differ. A problem that appears only on hot water points to the water heater, a mixing valve, or a scaled cartridge. A problem that affects the whole house at once points toward supply. A single weak faucet usually is not a pressure problem at all.

A model-specific manual

Before touching a pressure-reducing valve, a well pressure switch, or a tankless water heater setting, the manufacturer's documentation matters. Regulators are adjustable within limits, well switches have specific cut-in and cut-out settings, and tankless heaters have minimum flow thresholds below which they will not fire. Guessing here can create new problems, including unsafe ones.

Tools That Are Frequently Bought Too Early

A booster pump is the classic premature purchase. It raises pressure on the downstream side of where it is installed, which helps only if incoming pressure is genuinely low and the plumbing itself is not the limiting factor. If a home has a partially closed main valve, a failed regulator stuck in a low position, or a well pressure tank that has lost its air charge, a booster pump will not fix the underlying issue and may simply overpressurize the system downstream.

Whole-house pressure regulators are similar. They are appropriate when incoming pressure is excessive, which protects fixtures, supply lines, and appliances from stress. But installing one as a general cure for inconsistent pressure, when the actual issue is shared-flow competition among fixtures, adds a restriction that can make low-flow complaints worse.

Fancy showerheads marketed around pressure are also frequently misunderstood. A rain showerhead with wide coverage can feel luxurious when flow is generous and disappointing when it is not, because the same water is spread over a larger area. A narrower or more focused spray pattern often feels stronger with identical supply. This is a design preference, not a pressure fix.

Water softeners, sediment filters, and whole-house filtration can all influence pressure too, not because the technology is bad but because any inline device adds some resistance, and a clogged cartridge adds a great deal more. If pressure dropped after a filter was installed, the filter media and its loading state are the first things to examine. If the goal is treating water rather than changing pressure, a properly sized unit installed with attention to flow rate is what matters; a poorly sized one will reduce flow regardless of how good the water is afterward. For households addressing general water quality, a whole house water filter is a category of equipment where sizing and maintenance intervals matter more than brand language, and the manual's flow rating should be compared with the home's peak demand rather than with average use.

Matching the Tool to the Symptom

• Low pressure everywhere, all the time: suspect the supply, the meter, a failing regulator, or a well system issue. Measure at a spigot near the entry point.
• Pressure drops only when multiple fixtures run: this is usually a flow or pipe-size limitation, not a static pressure failure. A gauge will show normal pressure with everything closed.
• One fixture weak, others fine: the issue is local. Check the aerator, cartridge, shutoff valve, and flexible supply line before thinking about the whole system.
• Hot water weak, cold water fine: look at the water heater, its dip tube, and any mixing valve or scaled cartridge.
• Pressure drops suddenly after years of normal operation: consider a failed pressure regulator, a partially closed valve, or debris in the line after utility work.
• Pressure is high everywhere: this is the genuine case for a regulator, because sustained high pressure stresses supply lines, valves, and appliance connections.

Safety and Professional Boundaries

A pressure gauge on a hose bib is safe for any homeowner to use. So is checking a fixture aerator, replacing a showerhead, and reading a manual. Adjusting a well pressure switch involves line voltage and stored water pressure; it is best left to a qualified well or plumbing professional unless you are experienced and the system is de-energized appropriately. Replacing a pressure-reducing valve means shutting off and draining part of the system and working on a pressurized assembly. If you find water reaching electrical components, burning smells, or a supply line that is bulging or weeping, stop and call for service.

Diagnosing pressure is mostly a matter of measurement and pattern recognition, not a matter of buying the most powerful pump available. Measure first, understand where the loss occurs, and only then decide whether correction is even necessary.
